Flexible Energy Storage Wiring rau Kev Tiv Thaiv Pab Cuam Tshuam

Lub roj teeb lub zog cia cov tshuab muaj kev tswj hwm, saib xyuas, relay thiab txuas txuas ntxiv nrog rau siab - tam sim no cov roj teeb sib txuas. H07V-K tuaj yeem suav tias yogBESS txee cablerau qhov tsim nyog tiv thaiv nyob rau hauv circuits qhov twg nws voltage, tam sim no thiab installation tej yam kev mob yog tsim nyog. Tus neeg xyuas pib hloov pauv kuj tseem txhawb nqa lub zog cia relay xaim routing hauv kev tswj hwm enclosures thiab seem davhlau ya nyob twg. GERITEL WIRE tuaj yeem ua haujlwm nrog ESS integrators ntawm cov sijhawm xim, cov cim, ntim thiab cov ntaub ntawv kev tshuaj xyuas. Thaum tau teev tseg raws li lub roj teeb tswj kab hluav taws xob, H07V-K yuav tsum tsis txhob xav tias tsim nyog rau txhua lub roj teeb hluav taws xob sib txuas; kev xaiv engineering yuav tsum paub qhov txawv ntawm kev tswj cov kab hluav taws xob los ntawm qhov siab - txoj kev siv hluav taws xob tam sim no.

PRODUCT SPECIFICATIONS

flexible cable for wiring harness assembly

Daim ntawv thov

PVC vaj huam sib luag thaiv siv rau hauv kev tswj kev hloov, relay thiab instrumentation panels ntawm lub hwj chim switchgear thiab rau lub hom phiaj xws li cov connectors nyob rau hauv cov khoom rectifier, lub cev muaj zog pib thiab controllers.

SPECIFICATIONS

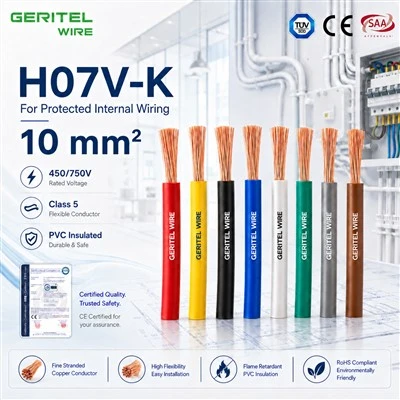

Kev ntsuas voltage Uo / U	H05V-K:300/500V H07V-K:450/750V
Kev ntsuas kub	Tsau: -30℃rau +70 degree Flexed: -5℃rau +70 degree
Yam tsawg kawg Bending Radius	Tsau: 6 x tag nrho txoj kab uas hla
Tus coj	Class 5 hloov tau tooj liab conductor
Rwb thaiv tsev	PVC (Polyvinyl Chloride)
Rwb thaiv tsev xim	Liab, Dub, Xiav, Txiv kab ntxwv, Daj, Dawb, Ntsuab / Daj, Violet, Paj yeeb, Grey, Xim av
STANDARDS	EN 50525-2-31, EN 60228 Nplaim Retardant raws li IEC / EN 60332-1-2 UV Resistant

DIMENSION

NOMINAL CROSS SECTIONAL AREA mm² os

	NOMINAL ZAJ NKAUJ DIAMETER mm² os	NOMINAL WEIGHT kg/km
	NOMINAL ZAJ NKAUJ DIAMETER mm² os	NOMINAL WEIGHT kg/km
H05V-K
0.5	2.20	9.1
0.75	2.40	11.7
1	2.55	14.4
H07V-K
1.5	3.00	20.1
2.5	3.65	31.5
4	4.20	46.2
6	4.80	65.1
10	6.25	109.4
16	7.40	165.2
25	9.40	253.4
35	10.40	345.5
50	12.55	492.4
70	14.10	669.3
95	17.20	910.4
120	17.70	1129.4
150	19.60	1401.0
185	23.00	1741.0
240	26.40	2267.5

Cov kws qhia

NOMINAL CROSS SIBAL UA mm² os	MAXIMUM DIAMETER NTAWM WIRES IN CONDUCTOR mm	MAXIMUM RESISTANCE CONDUCTOR ntawm 20 degree ohms/km
NOMINAL CROSS SIBAL UA mm² os	MAXIMUM DIAMETER NTAWM WIRES IN CONDUCTOR mm	Plain Hlau
0.5	0.21	39
0.75	0.21	26
1	0.21	19.5
1.5	0.26	13.3
2.5	0.26	7.98
4	0.31	4.95
6	0.31	3.3
10	0.41	1.91
16	0.41	1.21
25	0.41	0.78
35	0.41	0.554
50	0.41	0.386
70	0.51	0.272
95	0.51	0.206
120	0.51	0.161
150	0.51	0.129
185	0.51	0.106
240	0.51	0.0801

ELECTRICAL CHARACTERISTICS

NOMINAL CROSSS ECTIONAL AREA mm² os	CEEB TOOM A (XAIV IN CONDUIT IN THERMALLY Insulating WALL ETC) Amps		CEEB TOOM B (TSIS TXAUS SIAB RAU HAUV CONduIT HAUV VAJTSWV LUB SIJ HAWM TRUNKING ETC) Amps		CEEB TOOM C (CLIPPED DIRECT) Amps		CEEB TOOM F (Nyob hauv huab cua dawb lossis ONA PERFORATED CABLE TRAY ETC HORIZONTAL lossis VERTICAL ETC) Amps
							Kov			Spaced los ntawm ib diam
							Kov			2 Cables Ib -Phase ACor DC lossis 3 Cables Peb-Phase AC tiaj tus
	2 Kab Tib -Phase ACor DC	3o4 kab Peb -Phase AC	2 Kab Tib -Phase ACor DC	3o4 kab Peb -Phase AC	2 Kab Tib -Phase AC lub DC	3o4 ibCables Peb -Theem AC	2 Kab SinglePhase AC lub DCtiaj tus	3 Kab Peb -Phase ACflat	3 kab Peb -Phase ACtrefoil cov khoom	Kab rov tav	Ntsug
1.5	14.5	13.5	17.5	15.5	20	18	-	-	-	-	-
2.5	20	18	24	21	27	25	-	-	-	-	-
4	26	24	32	28	37	33	-	-	-	-	-
6	34	31	41	36	47	43	-	-	-	-	-
10	46	42	57	50	65	59	-	-	-	-	-
16	61	56	76	68	87	79	-	-	-	-	-
25	80	73	101	89	114	104	131	114	110	146	130
35	99	89	125	110	141	129	162	143	137	181	162
50	119	108	151	134	182	167	196	174	167	219	192
70	151	136	192	171	234	214	251	225	216	281	254
95	182	164	232	207	284	261	304	275	264	341	311
120	210	188	269	239	330	303	352	321	308	396	362
150	240	216	300	262	381	349	406	372	356	456	419
185	273	245	341	296	436	400	463	427	409	521	480
240	321	286	400	346	515	472	546	507	485	615	569

CERTIFICATIONS
