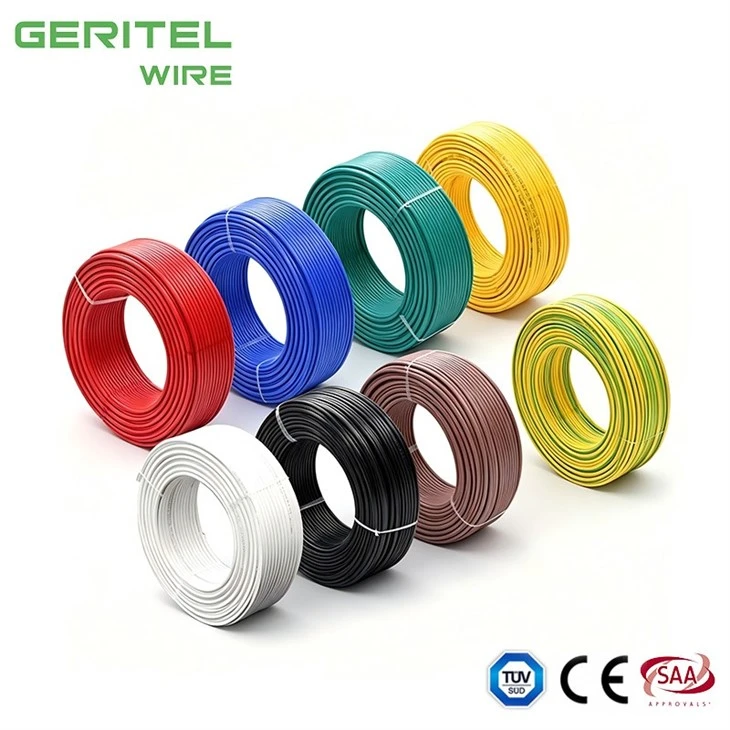

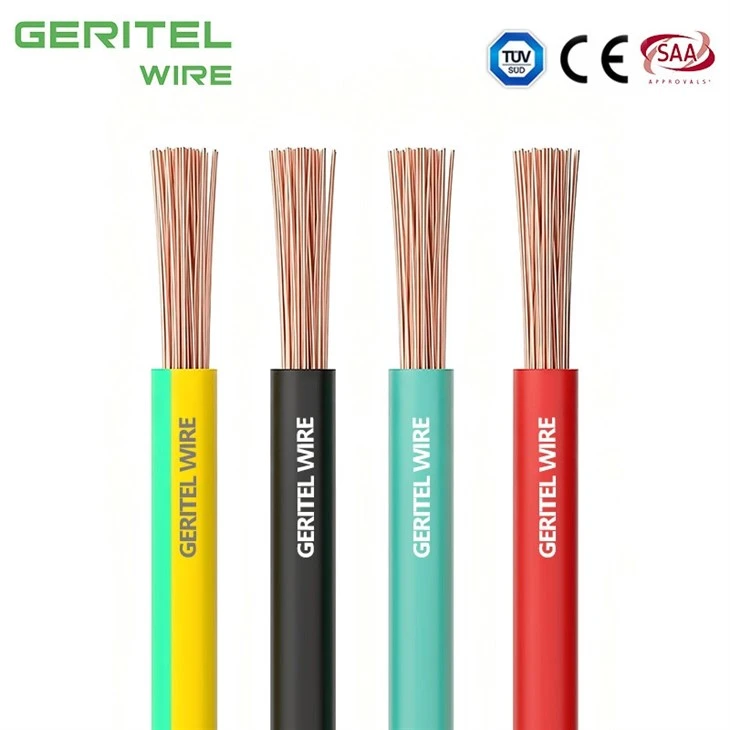

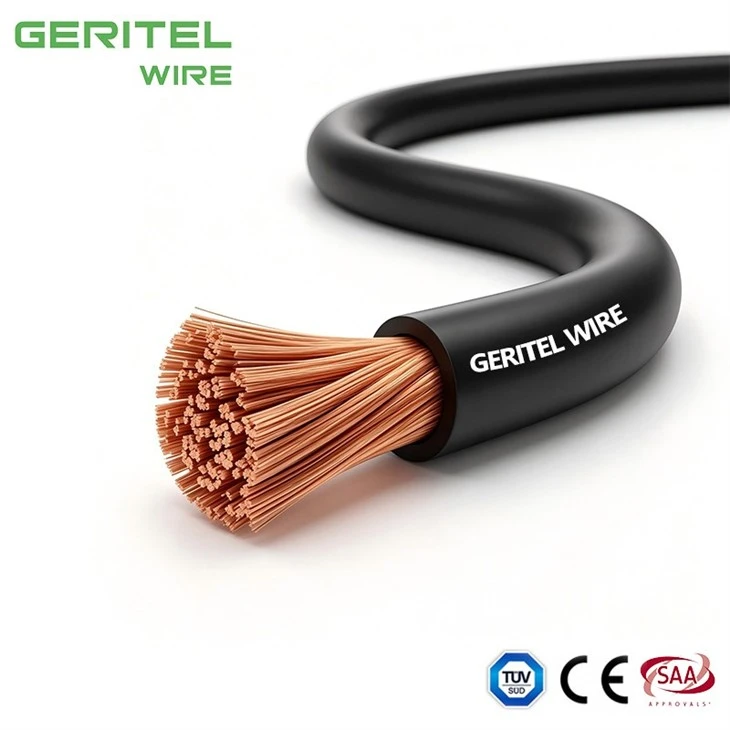

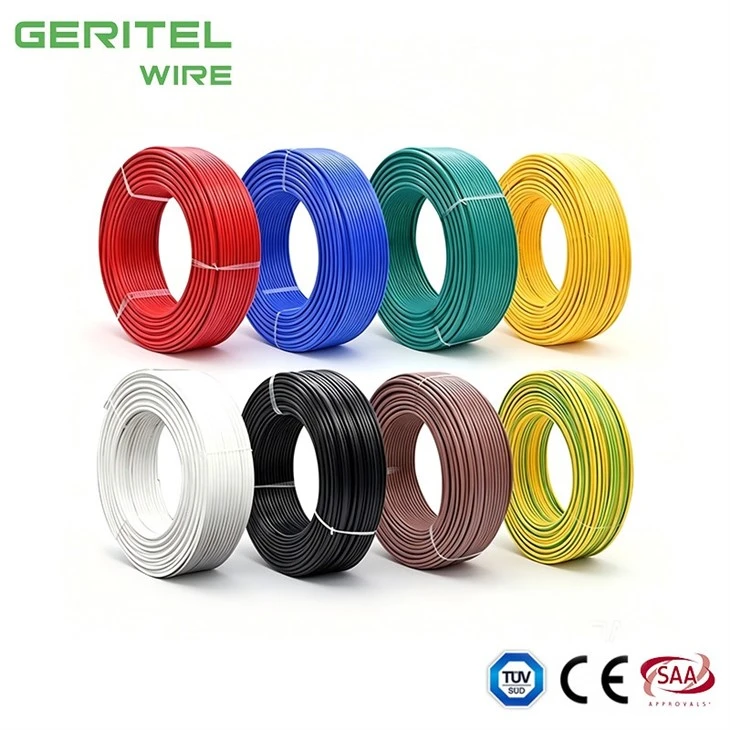

H07V-K cable

Flexible Hook Up Hlau rau Devices, Terminals thiab Control Circuits

Rau cov khoom siv OEM thiab cov khoom siv hluav taws xob, H07V-K tuaj yeem ua haujlwmcov khoom siv sib txuas hlaurau kev tiv thaiv luv luv ntawm cov keyboards, relays, cov khoom siv hluav taws xob, cov khoom siv hluav taws xob thiab cov khoom siv tswj. Kev siv tooj liab hloov tau yooj yim ua rau txhua tus neeg xyuas pib xaim yooj yim rau hauv cov khoom siv compact dua li lwm txoj hauv kev, thaum PVC rwb thaiv tsev muab qhov chaw paub txog kev kos, stripping thiab txiav tawm. GERITEL WIRE tuaj yeem txhawb xim -cov khoom siv coded, kev kos npe ntiag tug thiab tsim khoom- cov khoom ntim zoo rau cov tuam txhab. Hauv cov khoom siv hluav taws xob hauv hluav taws xob, hluav taws xob hluav taws xob, tam sim no, qhov kub thiab txias ntawm lub davhlau ya nyob twg yuav tsum tau tshuaj xyuas yog li cov cable xaiv tau sib xws rau cov khoom siv tiag tiag tsim tsis yog qhov sib txuas sib txuas- nce - xaim kev xav.

PRODUCT SPECIFICATIONS

H07V-K wire

Daim ntawv thov

PVC vaj huam sib luag thaiv siv rau hauv kev tswj kev hloov, relay thiab instrumentation panels ntawm lub hwj chim switchgear thiab rau lub hom phiaj xws li cov connectors nyob rau hauv cov khoom rectifier, lub cev muaj zog pib thiab controllers.

SPECIFICATIONS
Kev ntsuas voltage Uo / U	H05V-K:300/500V H07V-K:450/750V
Kev ntsuas kub	Tsau: -30℃rau +70 degree Flexed: -5℃rau +70 degree
Yam tsawg kawg Bending Radius	Tsau: 6 x tag nrho txoj kab uas hla
Tus coj	Class 5 hloov tau tooj liab conductor
Rwb thaiv tsev	PVC (Polyvinyl Chloride)
Rwb thaiv tsev xim	Liab, Dub, Xiav, Txiv kab ntxwv, Daj, Dawb, Ntsuab / Daj, Violet, Paj yeeb, Grey, Xim av
STANDARDS	EN 50525-2-31, EN 60228 Nplaim Retardant raws li IEC / EN 60332-1-2 UV Resistant

DIMENSION

NOMINAL CROSS SECTIONAL AREA mm² os

	NOMINAL ZAJ NKAUJ DIAMETER mm² os	NOMINAL WEIGHT kg/km
	NOMINAL ZAJ NKAUJ DIAMETER mm² os	NOMINAL WEIGHT kg/km
H05V-K
0.5	2.20	9.1
0.75	2.40	11.7
1	2.55	14.4
H07V-K
1.5	3.00	20.1
2.5	3.65	31.5
4	4.20	46.2
6	4.80	65.1
10	6.25	109.4
16	7.40	165.2
25	9.40	253.4
35	10.40	345.5
50	12.55	492.4
70	14.10	669.3
95	17.20	910.4
120	17.70	1129.4
150	19.60	1401.0
185	23.00	1741.0
240	26.40	2267.5

Cov kws qhia

NOMINAL CROSS SIBAL UA mm² os	MAXIMUM DIAMETER NTAWM WIRES IN CONDUCTOR mm	MAXIMUM RESISTANCE CONDUCTOR ntawm 20 degree ohms/km
NOMINAL CROSS SIBAL UA mm² os	MAXIMUM DIAMETER NTAWM WIRES IN CONDUCTOR mm	Plain Hlau
0.5	0.21	39
0.75	0.21	26
1	0.21	19.5
1.5	0.26	13.3
2.5	0.26	7.98
4	0.31	4.95
6	0.31	3.3
10	0.41	1.91
16	0.41	1.21
25	0.41	0.78
35	0.41	0.554
50	0.41	0.386
70	0.51	0.272
95	0.51	0.206
120	0.51	0.161
150	0.51	0.129
185	0.51	0.106
240	0.51	0.0801

ELECTRICAL CHARACTERISTICS

NOMINAL CROSSS ECTIONAL AREA mm² os	CEEB TOOM A (XAIV IN CONDUIT IN THERMALLY Insulating WALL ETC) Amps		CEEB TOOM B (TSIS TXAUS SIAB RAU HAUV CONduIT HAUV VAJTSWV LUB NEEJ TRUNKING ETC) Amps		CEEB TOOM C (CLIPPED DIRECT) Amps		CEEB TOOM F (Nyob hauv huab cua dawb lossis ONA PERFORATED CABLE TRAY ETC HORIZONTAL lossis VERTICAL ETC) Amps
							Kov			Spaced los ntawm ib diam
							Kov			2 Cables Ib -Phase ACor DC lossis 3 Cables Peb-Phase AC tiaj tus
	2 Kab Tib -Phase ACor DC	3o4 kab Peb -Phase AC	2 Kab Tib -Phase ACor DC	3o4 kab Peb -Phase AC	2 Kab Tib -Phase AC lub DC	3o4 ibCables Peb -Theem AC	2 Kab SinglePhase AC lub DCtiaj tus	3 Kab Peb -Phase ACflat	3 kab Peb -Phase ACtrefoil cov khoom	Kab rov tav	Ntsug
1.5	14.5	13.5	17.5	15.5	20	18	-	-	-	-	-
2.5	20	18	24	21	27	25	-	-	-	-	-
4	26	24	32	28	37	33	-	-	-	-	-
6	34	31	41	36	47	43	-	-	-	-	-
10	46	42	57	50	65	59	-	-	-	-	-
16	61	56	76	68	87	79	-	-	-	-	-
25	80	73	101	89	114	104	131	114	110	146	130
35	99	89	125	110	141	129	162	143	137	181	162
50	119	108	151	134	182	167	196	174	167	219	192
70	151	136	192	171	234	214	251	225	216	281	254
95	182	164	232	207	284	261	304	275	264	341	311
120	210	188	269	239	330	303	352	321	308	396	362
150	240	216	300	262	381	349	406	372	356	456	419
185	273	245	341	296	436	400	463	427	409	521	480
240	321	286	400	346	515	472	546	507	485	615	569

CERTIFICATIONS

H07V-K flexible wire

H07V-K flexible cable

Ntim

Yob

Yas Reel

Ntoo Ntoo Reel

APPLICATION

Industrial Control Vaj Huam Sib Luag

Kev Txuas Txuas Hluav Taws Xob Hluav Taws Xob

Switchboard thaiv kab

CAS

Adelaide Tshav Dav Hlau Switchboard Upgrade

Industrial Main Switchboard Fais Fab Distribution

Main Switchboard Flexible Cable Hloov

Vim li cas thiaj xaiv peb

30Xyoo ntawm kev paub
hauv ib qho - nres kev pabcuam

Dongguan Greater Wire & Cable Co., Ltd. yog tus kws tshaj lij engineering- qib cable chaw tsim khoom hauv Suav teb, muab cov ntawv pov thawj hluav taws xob cable daws teeb meem rau lub tsev, kev lag luam, tsuas, hluav taws xob, thiab kev tsim kho vaj tse thoob ntiaj teb.

Nrog rau 30,000 m² Hoobkas, 30 cov kab ntau lawm, cov kws tshaj lij engineers, thiab pab pawg tswj xyuas nruj, peb muab cov khoom lag luam txhim khu kev qha, traceable, thiab ua raws cov khoom siv cable rau kev siv engineering thoob ntiaj teb. Peb cov khoom tau txais kev txhawb nqa los ntawm cov ntawv pov thawj suav nrog SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, thiab ISO.

Peb tau cog lus rau kev nyab xeeb, kev ua tau zoo, pob tshab, thiab kev sib koom ua ke ntev -. Los ntawm kev tshuaj xyuas cov khoom siv raw mus rau kev kuaj cov khoom tiav, txhua batch yog ua tib zoo tswj xyuas kom ruaj khov kev ua tau zoo thiab siv tau qhov project.

Greater Cable - Certified Quality. Kev ntseeg tau. Engineering tus nqi.

15K

Kev Ua Haujlwm tiav

150+

cov neeg ua haujlwm tshaj lij

15K

zoo siab cov neeg siv khoom

92+

khoom plig & certifacates

COV TSWV YIM

GLOBAL CERTIFICATIONS

H07V-K switchboard wire

COV LUS DUAB

H07V-K building wire

INTERNATIONL TRANSPORTATION

Hiav txwv Freight

Peb muab cov kev daws teeb meem hauv hiav txwv txhim khu kev qha rau loj - ntim xaj. Koj cov khoom tau ntim khoom ruaj ntseg thiab xa mus rau hauv cov thawv ntim khoom, xyuas kom tus nqi - xa mus rau cov chaw nres nkoj thoob ntiaj teb.

Cua Freight

Rau kev xa khoom sai, peb cov kev pabcuam huab cua ua kom koj cov khoom mus txog thoob ntiaj teb cov chaw sai sai, nrog kev ceev faj thiab taug qab tag nrho ntawm txoj kev.

International Express

Xav tau kev thauj mus los sai? Peb cov kev pabcuam nthuav qhia thoob ntiaj teb xa cov xaj me me mus rau nruab nrab kom tau txais txiaj ntsig zoo, muab lub qhov rooj - rau - qhov rooj pabcuam nrog - lub sijhawm taug qab kom muaj kev thaj yeeb nyab xeeb.

COOPERATIVE PARTNER

Peb tab tom nrhiav kev sib koom tes los nthuav peb txoj kev lag luam.

Yuav koom tes nrog peb li cas?

Tsuas qhia koj cov kev xav tau, tau txais peb cov kev daws teeb meem, paub meej cov qauv, thiab txaus siab rau kev tsim khoom sai, txhim khu kev qha thiab xa khoom thoob ntiaj teb - ua haujlwm nrog peb yog qhov yooj yim.

Peb qhov chaw nyob

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, Suav teb

Xov tooj

+86 136 6257 9592

+86 135 1078 4550

E -mail

manager01@greaterwire.com

FAQ

H07V-K puas tuaj yeem siv los ua nuv-liab hlau?

Yog lawm, cov neeg xa khoom tuaj yeem sau H07V-K txuas xaim rau kev tiv thaiv cov khoom siv sib txuas. Tus neeg yuav khoom tseem yuav tsum tau kuaj xyuas qhov voltage, qhov kub thiab txias thiab kev pom zoo vim tias cov lus siv dav dav sib txuas-liab hlau npog ntau qhov sib txawv. GERITEL WIRE tuaj yeem ua raws li cov khoom ntim khoom nrog lub vaj huam sib luag- khw tuav, automated wire processing lossis distributor stocking yuav tsum tau xaj rov qab.

Puas yog 2491X tib yam li H07V-K?

2 491xyog ib qho ntawm UK-kev ua lag luam siv rau kev hloov pauv PVC ib leeg- cov tub ntxhais vaj huam sib luag thiab cov khoom siv hluav taws xob, thiab H07V-K tuaj yeem muab nkag rau hauv tsev neeg nyob ntawm tus qauv thiab kev ntaus nqi. Ib txwm sib piv cov ntaub ntawv es tsis txhob xav tias txhua 2491X cov npe zoo ib yam. Yog tias qhov project muaj ntau lub voj voog lossis qhov chaw lag luam, GERITEL WIRE tuaj yeem pab cais H07V-K daim ntawv thov los ntawm cov kab hluav taws xob uas xav tau LSZH, tshuaj ntsuam xyuas, siab - kub lossis txuas ntxiv -flex cable.

H07V-K?

H07V-K ib txwm siv IEC 60228 Class 5 tus neeg xyuas pib ua los ntawm ntau cov tooj liab zoo. Qhov kev tsim kho no txhim kho kev yooj yim ntawm kev txhim kho thiab ua rau txoj hauv kev los ntawm cov neeg coob coob ntawm cov txee layouts yooj yim dua nrog cov khoom siv hluav taws xob. GERITEL WIRE tuaj yeem muab cov ntaub ntawv kev tshuaj xyuas thiab cov khoom siv xa tawm kom cov neeg yuav khoom muaj cov ntaub ntawv meej dua ua ntej pom zoo ntau lawm.

Puas yog tus neeg xyuas pib liab qab lossis tinned tooj liab?

Standard H07V-K feem ntau yog ua los ntawm cov xov tooj zoo uas siv cov tooj liab liab qab annealed. Tinned tooj liab yuav tsum tsis txhob xav tias tshwj tsis yog nws tau hais tshwj xeeb hauv cov chaw tsim khoom tshwj xeeb lossis qhov yuav tsum tau ua. Rau cov kev pab cuam ntev -, GERITEL WIRE tuaj yeem tswj xyuas cov cim xim zoo ib yam, cov ntawv cim npe thiab cov ntaub ntawv xaj kom txo tau qhov tsis tuaj yeem txais thiab kev sib dhos yuam kev.
