Harmonized Vaj Huam Sib Luag Hlau rau Cov Khoom Siv Hluav Taws Xob thiab Cov Hluav Taws Xob

Cov neeg yuav khoom nyob sab Europe nquag tshawb nrhiav kev sib haum xeeb ib leeg -cov tub ntxhais txuas thaum muab cov khoom siv rau cov khoom siv, vaj huam sib luag thiab kev tiv thaiv kev teeb tsa. H07V-K haum cov lus lag luam noEuropean saj zawg zog cablenrog rau chav kawm 5 tooj liab thiab PVC rwb thaiv tsev. HAR ib leeg tub ntxhais cable tuaj yeem ua kom yooj yim cov lus qhia thoob plaws cov ntawv thov uas muaj kev sib haum xeeb thiab kev pom zoo yuav tsum tau kos npe, raws li cov khoom pom zoo. GERITEL WIRE tuaj yeem txhawb nqa cov ntaub ntawv tshuaj xyuas, cim cov khoom lag luam thiab xa tawm ntim rau cov haujlwm nyob sab Europe. Thaum siv los ua tus tswj hwm txee, daim ntawv pov thawj siv tau thiab cov lus qhia yuav tsum tau lees paub ua ntej tshaj tawm cov khoom raws li HAR- pom zoo rau ib qho kev txiav txim.

PRODUCT SPECIFICATIONS

HVAC control panels flexible wire

Daim ntawv thov

PVC vaj huam sib luag thaiv siv rau hauv kev tswj kev hloov, relay thiab instrumentation panels ntawm lub hwj chim switchgear thiab rau lub hom phiaj xws li cov connectors nyob rau hauv cov khoom rectifier, lub cev muaj zog pib thiab controllers.

SPECIFICATIONS
Kev ntsuas voltage Uo / U	H05V-K:300/500V H07V-K:450/750V
Kev ntsuas kub	Tsau: -30℃rau +70 degree Flexed: -5℃rau +70 degree
Yam tsawg kawg Bending Radius	Tsau: 6 x tag nrho txoj kab uas hla
Tus coj	Class 5 hloov tau tooj liab conductor
Rwb thaiv tsev	PVC (Polyvinyl Chloride)
Rwb thaiv tsev xim	Liab, Dub, Xiav, Txiv kab ntxwv, Daj, Dawb, Ntsuab / Daj, Violet, Paj yeeb, Grey, Xim av
STANDARDS	EN 50525-2-31, EN 60228 Nplaim Retardant raws li IEC / EN 60332-1-2 UV Resistant

DIMENSION

NOMINAL CROSS SECTIONAL AREA mm² os

	NOMINAL ZAJ NKAUJ DIAMETER mm² os	NOMINAL WEIGHT kg/km
	NOMINAL ZAJ NKAUJ DIAMETER mm² os	NOMINAL WEIGHT kg/km

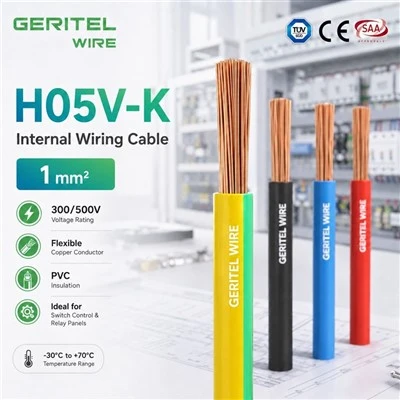

H05V-K
0.5	2.20	9.1
0.75	2.40	11.7
1	2.55	14.4
H07V-K
1.5	3.00	20.1
2.5	3.65	31.5
4	4.20	46.2
6	4.80	65.1
10	6.25	109.4
16	7.40	165.2
25	9.40	253.4
35	10.40	345.5
50	12.55	492.4
70	14.10	669.3
95	17.20	910.4
120	17.70	1129.4
150	19.60	1401.0
185	23.00	1741.0
240	26.40	2267.5

Cov kws qhia

NOMINAL CROSS SIBAL UA mm² os	MAXIMUM DIAMETER NTAWM WIRES IN CONDUCTOR mm	MAXIMUM RESISTANCE CONDUCTOR ntawm 20 degree ohms/km
NOMINAL CROSS SIBAL UA mm² os	MAXIMUM DIAMETER NTAWM WIRES IN CONDUCTOR mm	Plain Hlau
0.5	0.21	39
0.75	0.21	26
1	0.21	19.5
1.5	0.26	13.3
2.5	0.26	7.98
4	0.31	4.95
6	0.31	3.3
10	0.41	1.91
16	0.41	1.21
25	0.41	0.78
35	0.41	0.554
50	0.41	0.386
70	0.51	0.272
95	0.51	0.206
120	0.51	0.161
150	0.51	0.129
185	0.51	0.106
240	0.51	0.0801

ELECTRICAL CHARACTERISTICS

NOMINAL CROSSS ECTIONAL AREA mm² os	CEEB TOOM A (XAIV IN CONDUIT IN THERMALLY Insulating WALL ETC) Amps		CEEB TOOM B (TSIS TXAUS SIAB RAU HAUV CONduIT HAUV VAJTSWV LUB NEEJ TRUNKING ETC) Amps		CEEB TOOM C (CLIPPED DIRECT) Amps		CEEB TOOM F (Nyob hauv huab cua dawb lossis ONA PERFORATED CABLE TRAY ETC HORIZONTAL lossis VERTICAL ETC) Amps
							Kov			Spaced los ntawm ib diam
							Kov			2 Cables Ib -Phase ACor DC lossis 3 Cables Peb-Phase AC tiaj tus
	2 Kab Tib -Phase ACor DC	3o4 kab Peb -Phase AC	2 Kab Tib -Phase ACor DC	3o4 kab Peb -Phase AC	2 Kab Tib -Phase AC lub DC	3o4 ibCables Peb -Theem AC	2 Kab SinglePhase AC lub DCtiaj tus	3 Kab Peb -Phase ACflat	3 kab Peb -Phase ACtrefoil cov khoom	Kab rov tav	Ntsug
1.5	14.5	13.5	17.5	15.5	20	18	-	-	-	-	-
2.5	20	18	24	21	27	25	-	-	-	-	-
4	26	24	32	28	37	33	-	-	-	-	-
6	34	31	41	36	47	43	-	-	-	-	-
10	46	42	57	50	65	59	-	-	-	-	-
16	61	56	76	68	87	79	-	-	-	-	-
25	80	73	101	89	114	104	131	114	110	146	130
35	99	89	125	110	141	129	162	143	137	181	162
50	119	108	151	134	182	167	196	174	167	219	192
70	151	136	192	171	234	214	251	225	216	281	254
95	182	164	232	207	284	261	304	275	264	341	311
120	210	188	269	239	330	303	352	321	308	396	362
150	240	216	300	262	381	349	406	372	356	456	419
185	273	245	341	296	436	400	463	427	409	521	480
240	321	286	400	346	515	472	546	507	485	615	569

CERTIFICATIONS
