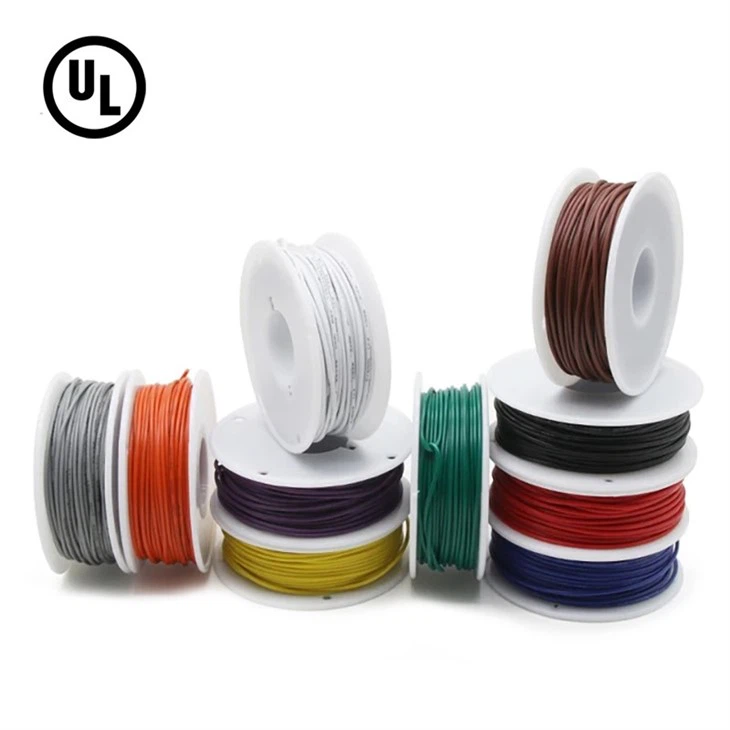

600V UL3512 Hlau 200℃Silicone Rubber Hlau
600V UL3512 hlau 200℃silicone roj hmab hlau nta tinned los yog liab qab annealed tooj liab conductors xws li 0.3-250 mm². Muaj nyob rau hauv stranded los yog khoom siv, nws muaj zoo heev conductivity thiab yooj. Cov txheej txheej txheej yog ua los ntawm siab - kub resistant silicone roj hmab rwb thaiv tsev, muaj peev xwm ua hauj lwm kub mus txog 200 degree. Nws kuj nthuav tawm kev laus zoo, ozone, thiab tshuaj lom neeg ua haujlwm, ua kom lub sijhawm ntev, ua haujlwm ruaj khov. Rated ntawm 600 V, lub cable no ua raws li UL3512 cov qauv thiab tau dhau UL VW-1 thiab cUL FT1 ntsug nplaim taws kuaj, ua kom pom cov nplaim hluav taws zoo heev thiab kev nyab xeeb.
Daim ntawv thov
Daim ntawv thov
Teeb pom kev zoo
Haum rau kev xaim nyob rau hauv siab - qhov kub thiab txias ntawm cov teeb xws li theem teeb, teeb pom kev zoo, thiab cov teeb kom qhuav, kom ntseeg tau tias tsis kam yaj thiab brittleness thaum kub kub.

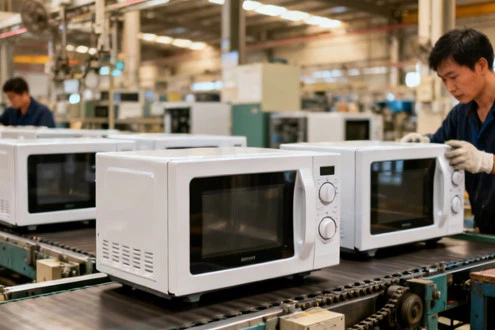

Cov khoom siv hauv tsev
Nrog rau qhov siab -kub hluav taws xob thiab cua kub cua sov hauv qhov chaw ci, tiv thaiv kev laus ntawm cov rwb thaiv tsev thiab tawg, yog li txuas ntxiv lub neej ntawm cov khoom siv hauv tsev.

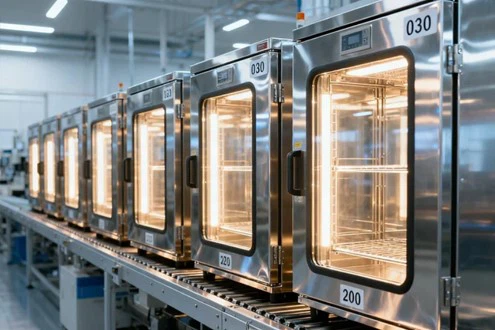

Cua sov
Cov cua sov ua kom kub tsis tu ncua thaum ua haujlwm. UL3512 rwb thaiv tsev muaj cov tuab tuab, ua rau nws yooj yim rau sawb thiab xa cov cables hauv qhov chaw kaw hauv cov cua sov.

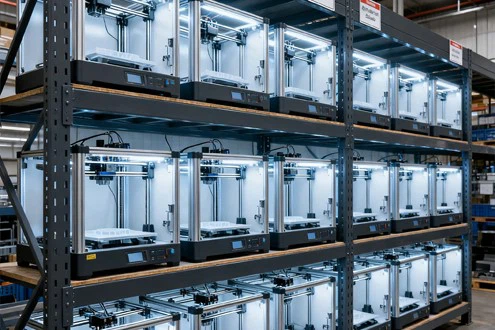

3D tshuab luam ntawv
Siv rau siab - kub xov nyob ze ntawm lub taub hau luam ntawv, rhuab txaj, los yog CNC spindles, kom ntseeg tau siab -kev ua haujlwm precision tsis hais qhov kub thiab txias.
Cov cuab yeej kuaj
Haum rau siv hauv cov cuab yeej kuaj thiab cov khoom siv tshuaj lom neeg. Silicone roj hmab rwb thaiv tsev tiv thaiv corrosion los ntawm cov roj, acids, alkalis, thiab lwm yam tshuaj.
Automotive Cav
Nruab nyob rau hauv siab - qhov kub thiab txias nyob ib ncig ntawm lub cav, lawv tiv taus cua sov, roj pos huab, thiab kev co, ua kom muaj kev nyab xeeb ntawm lub tsheb lub tshuab hluav taws xob.
Daim ntawv pov thawj
UL3512 Hlau yog UL ntawv pov thawj. Nws tus neeg xyuas pib yog ua los ntawm siab -purity annealed tooj liab, tinned rau txhim khu kev tiv thaiv oxidation thiab corrosion. Nws tuav zoo heev conductivity txawm nyob rau hauv lub caij ntuj sov tej yam kev mob. Cov txheej txheej sab nrauv yog ua los ntawm cov qib siab - zoo silicone roj hmab rwb thaiv tsev, uas inherently muaj zoo heev siab - kub tsis kam thiab muaj peev xwm tiv taus kev khiav hauj lwm kub txog 200℃. Nws kuj nthuav tawm qhov yooj yim thiab kev laus ua haujlwm, ua rau nws tsis tshua muaj kev tawg vim thermal expansion thiab contraction. Silicone roj hmab kuj muaj cov rwb thaiv tsev siab thiab arc tsis kam, txo qhov kev pheej hmoo ntawm kev tawg thiab tawg.
UL 3512 VS. TIAB SA 3135
| Feature | TIAB SA 3512 | TIAB SA 3135 |
|---|---|---|
| Cov khoom siv rwb thaiv tsev | Silicone Roj Hmab | Silicone Roj Hmab |
| Kev ntsuas kub | -60℃rau +200 degree | -60℃rau +200 degree |
| Rated Voltage | 600V (AC) | 600V (AC) |
| Cov khoom siv coj ua | Tinned tooj liab | Tinned tooj liab |
| Hluav taws xob Performance | Hluav taws xob rwb thaiv tsev zoo | Superior hluav taws xob rwb thaiv tsev, haum rau siab dua - cov khoom siv hluav taws xob ua tau zoo |
| Yooj yim | High yooj, haum rau khoov thiab ncab | High yooj, haum rau khoov thiab ncab |
| Kev Tiv Thaiv Sab Nraud | Tsis muaj txheej txheej tiv thaiv ntxiv | Tsis muaj txheej txheej tiv thaiv ntxiv |
| Cov ntawv pov thawj txheem | UL 758, UL 1581, UL 2556 | UL 758, UL 1581, UL 2556 |
| Mechanical Performance | Zoo tensile thiab khoov zog | Zoo tensile thiab khoov zog |
| Daim ntawv thov | Haum rau cov khoom siv hauv tsev, khoom siv hauv tsev, tsheb, khoom siv hluav taws xob, thiab lwm yam. | Haum rau cov khoom siv hluav taws xob, tsheb, khoom siv hluav taws xob, tshwj xeeb tshaj yog nyob rau hauv siab -kev ua haujlwm hluav taws xob ib puag ncig |
| Nqi | Tus nqi qis dua, haum rau kev sib txuas hluav taws xob kub siab dav dav | Tus nqi siab dua, tsim nyog rau ib puag ncig uas xav tau kev ua haujlwm hluav taws xob zoo dua |
Pob
Peb Pob
Silicone roj hmab xaim tuaj yeem ntim rau hauv yob raws li kev thov
Cov khoom loj ntawm silicone roj hmab cable tau ntim rau ntawm pallets.
Silicone roj hmab xaim kuj tuaj yeem ntim rau hauv lub thawv
Cov kab ntau lawm
Dongguan Greater Wire & Cable Co., Ltd. yog cov kws tshaj lij silicone roj hmab xaim chaw tsim khoom nrog ntau tshaj 30 xyoo ntawm kev paub hauv hlau thiab cable ntau lawm. Peb tshwj xeeb hauv kev tshawb fawb thiab kev tsim kho, thiab kev tsim cov khoom siv siab - kub conductors. Peb cov silicone roj hmab cables tau dav siv nyob rau hauv siab - qhov kub thiab txias ib puag ncig xws li cov khoom siv hauv tsev, cov khoom siv hauv tsev, cov hlua hluav taws xob tsheb, thiab cov teeb pom kev zoo. Greater Wire siv cov kab ntau lawm automated ntau lawm thiab ib tug nruj zoo tswj system. Los ntawm siab -purity tinned tooj liab conductors rau premium silicone roj hmab rwb thaiv tsev, peb nruj me ntsis tswj qhov zoo ntawm tag nrho cov ntaub ntawv raw. Peb cov khoom muaj cov conductivity zoo heev, kub tsis kam, thiab aging kuj. Peb tau txais ntau daim ntawv pov thawj thoob ntiaj teb, suav nrog UL thiab cUL, thiab tuaj yeem muab cov neeg siv khoom thoob ntiaj teb nrog siab - zoo silicone roj hmab xaim uas ua tau raws li cov qauv thoob ntiaj teb. Peb kuj txhawb kev tsim khoom hauv ntau yam tshwj xeeb, xim, thiab xim. Nrog rau pab pawg kws tshaj lij thiab kev txhawb nqa hauv online 24/7, peb tuaj yeem muab cov neeg siv khoom nrog ib qho - nres kev daws teeb meem los ntawm kev xaiv thiab ua pov thawj rau ntau lawm. Peb yog ib tus neeg koom tes nrog cov xaim thiab cable.
Technology thiab Zoo
Peb nruj me ntsis ua raws li cov qauv thoob ntiaj teb thiab tswj hwm kev tswj hwm los ntawm kev tshuaj xyuas cov khoom raw mus rau cov khoom tiav.
Kev Pabcuam Ntiaj Teb thiab Kev Pabcuam
Peb xa peb cov khoom mus rau ntau tshaj 80 lub teb chaws thoob ntiaj teb thiab paub txog cov ntawv pov thawj hauv zos thiab cov txheej txheem ntshuam thiab xa tawm.
50,000M²
Hoobkas
Thaj chaw
30+Xyoo
Ntau lawm
Kev paub
50+Kev pab
Khoom
Cov ntawv pov thawj
80+Lub teb chaws
Export
Kev paub
FAQ
Q: Dab tsi yog silicone roj hmab xaim
A: Silicone roj hmab cable yog qhov tseem ceeb silicone cable, tsis yog cov roj hmab zoo tib yam. Nws cov rwb thaiv tsev yog ua los ntawm silicone roj hmab, cov roj hmab tshwj xeeb. Hauv kev lag luam, silicone roj hmab cable feem ntau muab faib ua silicone cable es tsis yog dav dav - lub hom phiaj roj hmab cable.
Q: Dab tsi yog hom nuv -liab hlau?
A: Hook- hom hlau feem ntau txawv los ntawm cov khoom siv rwb thaiv tsev: PVC, Teflon, silicone roj hmab, lossis XLPE
Q: Uas Muaj Kev Nyab Xeeb, Teflon lossis Silicone Hlau?
A: PTFE (Teflon) xaim muaj kev nyab xeeb dua rau siab - cua sov thiab tshuaj lom neeg hnyav ib puag ncig, thaum silicone roj hmab xaim muaj kev nyab xeeb dua rau kev hloov pauv, kev vibration - nquag, lossis qis - daim ntawv thov kub.
Cim npe nrov: 600v ul3512 hlau 200℃silicone roj hmab xaim, Tuam Tshoj 600v ul3512 hlau 200℃silicone roj hmab hlau manufacturers, lwm tus neeg, Hoobkas
| UL Style & Cul Hom | Tus coj | Rwb thaiv tsev Thickness | Zuag qhia tag nrho Dimeter | Sawv ntsug -up | Conductor Resistance ntawm 20 degree | ||
| AWG | Kev tsim kho | ||||||
| Tsis muaj / mm | mm | mm | Ft/coil | M/Coil | Ω / KM | ||
| UL3512 CUL AWM IA (Txoj kev) |
22 | 7/0.25 | 0.76 | 2.30 | 2000 | 610 | 59.4 |
| 17/0.16 | 0.76 | 2.30 | 2000 | 610 | |||
| 20 | 7/0.31 | 0.76 | 2.50 | 2000 | 610 | 36.7 | |
| 21/0.178 | 0.76 | 2.50 | 2000 | 610 | |||
| 18 | 7/0.39 | 0.76 | 2.71 | 2000 | 610 | 23.2 | |
| 34/0.178 | 0.76 | 2.71 | 2000 | 610 | |||
| 16 | 7/0.50 | 0.76 | 3.05 | 1000 | 305 | 14.6 | |
| 26/0.25 | 0.76 | 3.05 | 1000 | 305 | |||
| 14 | 37/0.26 | 0.76 | 3.42 | 1000 | 305 | 8.96 | |
| 41/0.25 | 0.76 | 3.42 | 1000 | 305 | |||
| 12 | 45/0.32 | 0.76 | 4.00 | 1000 | 305 | 5.64 | |
| 65/0.25 | 0.76 | 4.00 | 1000 | 305 | |||
