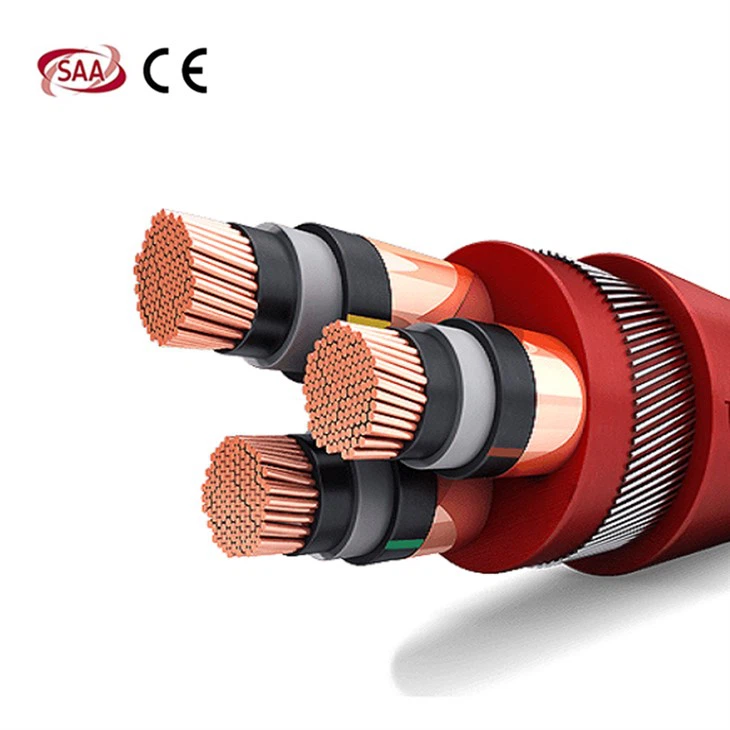

American standard mv105 15kv cable yog ib lub cable uas ua tau raws li Asmeskas tus qauv specifications thiab feem ntau yog siv nyob rau hauv high-voltage daim ntawv thov scenarios. Cov kab hluav taws xob no muaj qhov ntsuas hluav taws xob ntawm 15kV, qhov ntsuas kub ntawm 105 degree, ua raws li cov qauv UL, thiab feem ntau siv rau hauv kev lag luam thiab kev lag luam xws li chaw nres tsheb fais fab, chaw nres tsheb, chaw nres tsheb, thiab cov khoom siv hluav taws xob.
yam ntxwv
Cov yam ntxwv ntawm Asmeskas tus qauv mv 105 15kv cable suav nrog kev ua haujlwm siab thiab kev tiv thaiv zoo. Nws txhim kho qhov yooj yim ntawm cov cables, ua kom yooj yim cov txheej txheem kev teeb tsa, thiab txo cov sij hawm poob thiab cov nqi zog uas yuav tsum tau ua rau kev teeb tsa los ntawm kev siv braided shielding system. Tsis tas li ntawd, lub cable kuj muaj zog tiv thaiv tshav ntuj thiab roj, thiab tau dhau los ntawm -40 º C txias dabtsi yog khoov kuaj. Raws li NEC cov qauv, nws tuaj yeem raug faus ncaj qha, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov chaw nres tsheb fais fab, chaw faib khoom, chaw nres tsheb, thiab cov khoom siv hluav taws xob.
Feature
● Tus neeg xyuas pib: Electrolytic Compressed aluminium class 2 lossis tooj liab chav kawm 2 (Mos Copper lossis 1350-H19 aluminium)
● UL1072
● FT2 FT1 VW-1 - Txhua Qhov Loj
● Sunlight Resistant - Qhov ntau thiab tsawg 8 AWG thiab loj dua
● RoHS/REACH Raws Cai
● UL & CSA ntawv pov thawj
● Conductor screen: Semi conductive extruded txheej
● Txheej txheej: Sun resistant LLDPE sheath
● Rated voltage (U): 5 ~ 35 kV
Daim ntawv pov thawj
Peb cov khoom tau ua tiav ntau yam kev lees paub thoob ntiaj teb, suav nrog UL, TUV, EU CPR, CE, ROHS, thiab lwm yam.
Pob
Cov kab ntau lawm
Greater Wire & Cable Chaw tsim tshuaj paus yog ib qho kev koom ua ke ntawm ntse thiab digital factories tsim los ua kom ntau lawm ceev thiab tseem ceeb dua kom paub meej cov qauv zoo tshaj plaws, nrog cov khoom siv hluav taws xob ntau lawm kom raug mus txog 0.002mm. Txhua lub cable tsim tau dhau los ua tiav 100% kev tshuaj xyuas thoob plaws hauv cov txheej txheem tsim khoom thiab tshuaj xyuas, tsim kom muaj lub sijhawm tshiab ntawm qhov tseeb thiab ua haujlwm tau zoo. Kev teeb tsa siab heev tshem tawm qhov yuam kev thiab qhov tsis xws luag cuam tshuam nrog kev sib dhos ntawm phau ntawv, tsim kev cog lus ntawm kev xa khoom nrog kev ntseeg siab tsis sib xws.
Case
Tus khub
FAQ
Q: mv 105 15kv cable siv rau dab tsi?
Q: MV 15 kV cable txhais li cas?
Q: Puas yog 15kV nruab nrab-voltage cable?
Cim npe nrov: mv 105 15kv cable, Tuam Tshoj mv 105 15kv cable manufacturers, lwm tus neeg, Hoobkas
| Lead-Free Thermoplastic Heat-Resistant Hluav Taws Xob Hlau nrog Nylon Sheath (Thhn/Thwn-2). 600v ua. 90 degree | |||||||||
| Tus neeg tsav tsheb loj | No. & Nominal Diameter ntawm Hlau | Phab ntsa Thickness | Kwv yees tag nrho txoj kab uas hla | Yam tsawg kawg nkaus rwb thaiv tsev tsis kam | * Ampacity | Cable Nominal Nyhav | |||
| (mm) | (AWG) | (mm) | PVC (mm) | Nylon (mm) | (mm) | mΩ/kM | 90 degree ntub dej | 90 degree Qhuav | KG/kM |
| THWN | THHN | ||||||||
| Khoom | |||||||||
| 1.6mm ib | 14 | 1 x 1,60 mm | 0.4 | 0.10 | 2.60 | 130 | 35 | 35 | 22.62 |
| 2. 0mm | 12 | 1 x 2 00mm | 0.4 | 0.10 | 3.00 | 110 | 40 | 40 | 33.57 |
| 2.6mm ib | 10 | 1 x 2,60 mm | 0.5 | 0.10 | 3.80 | 120 | 55 | 55 | 55.78 |
| 3.2mm ib | 8 | 1 x 3,20 mm | 0.8 | 0.13 | 5.06 | 120 | 75 | 75 | 88.33 |
| Tso tseg | |||||||||
| 2 0mm² | 14/7 | 7/0.60 | 0.4 | 0.10 | 2.80 | 130 | 30 | 35 | 23.51 |
| 3.5mm 3 | 12/7 | 7/0.80 | 0.4 | 0.10 | 3.40 | 110 | 35 | 40 | 39.12 |
| 5.5mm 2.5 hli | 10/7 | 7/1.00 | 0.5 | 0.10 | 4.20 | 120 | 50 | 55 | 60.56 |
| 8. 0mm² | 8/7 | 7/1.20 | 0.8 | 0.13 | 5.46 | 120 | 65 | 75 | 91.95 |
| 14mm 2 2 | 6/7 | 7/1.60 | 0.8 | 0.13 | 6.66 | 100 | 95 | 105 | 151.77 |
| 22mm 2 2 | 4/7 | 7/2.00 | 1 | 0.15 | 8.30 | 100 | 130 | 140 | 236.65 |
| 30 mm² os | 2/7 | 7/2.30 | 1 | 0.15 | 9.20 | 100 | 160 | 170 | 306.50 |
| 38mm wb | 1-19 | 19/1.60 | 1.3 | 0.18 | 10.96 | 100 | 185 | 195 | 409.82 |
| 50mm 2 y | 1/0-19 | 19/1.80 | 1.3 | 0.18 | 11.96 | 100 | 220 | 235 | 509.05 |
| 60mm 20000000000000 tau | 2/0-19 | 19/2.00 | 1.3 | 0.18 | 12.96 | 80 | 250 | 260 | 618.96 |
| 80mm 2 y | 3/0-19 | 19/2.30 | 1.3 | 0.18 | 14.46 | 80 | 300 | 320 | 804.44 |
| 100 mm² os | 4/0-19 | 19/2.60 | 1.3 | 0.18 | 15.96 | 80 | 355 | 370 | 1013.94 |
| 125 m² os | 250 MCM | 37/2.10 | 1.6 | 0.18 | 18.26 | 80 | 400 | 420 | 1296.37 |
| 150 mm² os | 300 MCM | 37/2.30 | 1.6 | 0.20 | 19.70 | 80 | 440 | 475 | 1542.02 |
| 350 MCM | 37/2.47 | 1.6 | 0.20 | 20.90 | 60 | 505 | 523 | 1783.07 | |
| 200 mm² os | 400 MCM | 37/2.60 | 1.6 | 0.20 | 21.80 | 60 | 540 | 570 | 1946.72 |
| 500 MCM | 37/2.95 | 1.6 | 0.20 | 24.25 | 60 | 620 | 655 | 2486.02 | |
| 250 mm² os | 500 MCM | 61/2.30 | 1.6 | 0.20 | 24.30 | 60 | 620 | 655 | 2437.34 |
| 600 MCM | 61/2.52 | 1.8 | 0.23 | 26.76 | 60 | 690 | 710 | 2995.93 | |
| 325mm 3 2 | 650 MCM | 61/2.60 | 1.8 | 0.23 | 27.46 | 60 | 720 | 770 | 3191.58 |
| 7 50 MCM | 61/2.82 | 1.8 | 0.23 | 29.36 | 60 | 785 | 820 | 3719.63 | |
| 400 mm² os | 800 MCM | 61/2.90 | 1.8 | 0.23 | 30.16 | 60 | 810 | 875 | 3927.55 |
| 500 mm² os | 1000 MCM | 61/3.20 | 1.8 | 0.23 | 32.86 | 60 | 930 | 995 | 4750.91 |
| Cov qauv siv: PEC, NEC (raws li qhov ntsuas kub ntawm 30 degree) | |||||||||
