Qhov loj ntawm lub hnub ci vaj huam sib luag ua lub luag haujlwm tseem ceeb hauv kev tsim thiab kev ua haujlwm ntawm lub hnub ci zog. Thaum cov vaj huam sib luag loj tuaj yeem muab lub zog ntau dua, lawv tsis yog qhov kev xaiv zoo tshaj plaws rau txhua daim ntawv thov. Kev txiav txim siab seb lub hnub ci loj dua yuav zoo dua yog nyob ntawm cov yam ntxwv xws li qhov chaw teeb tsa, kev tsim qauv, kev sib raug zoo nrog inverters, thiab lub luag haujlwm ntawm cov hnub ci cables thiab hnub ci xaim hauv kev ua kom muaj kev nyab xeeb thiab siv hluav taws xob zoo.
Tsab ntawv xov xwm no tshawb txog qhov zoo thiab qhov tsis zoo ntawm cov hnub ci loj dua thiab piav qhia tias hnub ci cables thiab cov xov hlau cuam tshuam li cas rau qhov kev ua haujlwm tag nrho.
Nkag siab txog Hnub Ci Vaj Huam Sib Luag Loj thiab Lub Hwj Chim Tso Tawm
Hnub ci vaj huam sib luag loj feem ntau yog hais txog nws lub cev qhov ntev thiab lub zog tso zis. Cov vaj huam sib luag loj dua feem ntau muaj wattage ntau dua vim tias lawv muaj ntau lub cell photovoltaic. Piv txwv li:
Lub vaj huam sib luag vaj huam sib luag yuav tsim tau 300-400 watts.
Kev lag luam loj lossis kev lag luam vaj huam sib luag tuaj yeem tsim 500 watts lossis ntau dua.
Qhov kev xaiv ntawm cov vaj huam sib luag me thiab loj dua cuam tshuam rau qhov kev tsim qauv, nrog rau kev teeb tsa, kev teeb tsa hluav taws xob, thiab cov khoom siv hluav taws xob thiab cov xov hlau uas yuav tsum tau ua.
Qhov zoo ntawm Loj Solar Panels
Siab zog tso zis:
Cov vaj huam sib luag loj tuaj yeem tsim hluav taws xob ntau dua rau ib chav tsev, txo tag nrho cov vaj huam sib luag uas xav tau.
Qhov no minimizes installation lub sij hawm thiab cov nqi, tshwj xeeb tshaj yog rau cov loj systems.
Space Efficiency:
Rau kev teeb tsa nrog qhov chaw tsawg, xws li lub ru tsev, cov vaj huam sib luag loj loj ua kom muaj zog ntau lawm ib square meter.
Cov vaj huam sib luag tsawg dua txhais tau tias tsawg dua racking thiab kev sib txuas tsawg dua, ua kom yooj yim rau kev teeb tsa.
Txo Kev Kho Mob:
Nrog tsawg dua cov vaj huam sib luag, kev saib xyuas yooj yim dua, vim tias muaj cov ntsiab lus tsis ua haujlwm tsawg dua, xws li cov khoom sib txuas thiab cov xov hluav taws xob hnub ci.
Disadvantages ntawm Loj Solar Panels
Qhov hnyav thiab tuav:
Cov vaj huam sib luag loj dua yog qhov hnyav dua thiab nyuaj rau kev teeb tsa, uas tuaj yeem ua rau cov nqi zog thiab sijhawm.
Cov qauv ru tsev yuav xav tau kev txhawb nqa los txhawb qhov hnyav ntxiv.
Teeb meem kev sib raug zoo:
Cov vaj huam sib luag loj dua yuav tsis haum rau txhua qhov chaw teeb tsa, tshwj xeeb tshaj yog lub ru tsev tsis zoo.
Lawv yuav tsum tau ceev faj txoj hlua tsim los xyuas kom meej kev sib raug zoo nrog lub inverter qhov voltage thiab tam sim no txwv.
Tus nqi Hloov:
Yog tias lub vaj huam sib luag loj tsis ua haujlwm, hloov nws yuav raug nqi ntau dua piv rau cov vaj huam sib luag me.
Solar Cable thiab Wire Requirements:
Cov vaj huam sib luag loj dua feem ntau tsim cov dej ntws ntau dua, xav tau cov kab hluav taws xob tuab dua thiab cov xov hlau.
Cov kab hluav taws xob tsis zoo tuaj yeem ua rau overheating, voltage te, thiab inefficient.

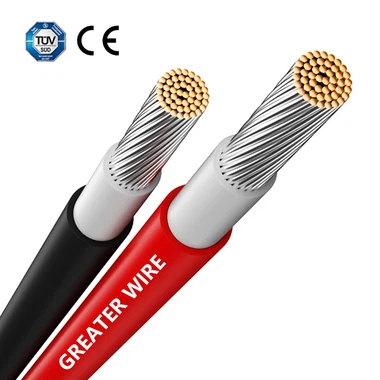

Lub luag haujlwm ntawm Solar Cables thiab Solar Wires
Hnub ci cables thiab xov hlau yog qhov tseem ceeb rau kev xa hluav taws xob los ntawm lub hnub ci vaj huam sib luag mus rau lub inverter thiab, thaum kawg, mus rau kab sib chaws lossis roj teeb cia. Qhov loj ntawm cov panels cuam tshuam cov kev xav tau ntawm cov khoom no.
Cable Sizing rau cov vaj huam sib luag loj:
Cov vaj huam sib luag loj dua tsim cov khoom siv hluav taws xob ntau dua, uas yuav tsum muaj cov xov tooj hluav taws xob hnub ci thiab cov xaim hluav taws xob uas muaj zog dua (tam sim no muaj peev xwm nqa tau).
Kev siv cov kab hluav taws xob tsis zoo tuaj yeem ua rau overheating, lub zog poob, thiab kev nyab xeeb.
Voltage thiab tam sim no xav txog:
Qhov hluav taws xob thiab tam sim no uas tsim los ntawm cov vaj huam sib luag loj yuav tsum phim cov kev ntsuas cable kom tsis txhob muaj hluav taws xob tawg lossis hluav taws xob poob.
Hnub ci cables yuav tsum txhawb qhov system voltages, uas tuaj yeem ncav cuag li 1,500V hauv kev lag luam.
Length ntawm Cable khiav:
Hauv kev teeb tsa loj dua, kev siv cable ntev dua yog qhov ntau. Rau cov vaj huam sib luag loj uas tsim tau lub zog ntau dua, cov kab ntev ntev yuav tsum tau ua kom tuab dua kom txo tau qhov hluav taws xob tsawg.
Durability thiab rwb thaiv tsev:
Kev rwb thaiv tsev zoo yog qhov tseem ceeb rau cov hnub ci cables thiab cov xov hlau siv nrog cov vaj huam sib luag loj, vim tias cov hluav taws xob ntau dua tuaj yeem tsim hluav taws xob ntau dua.
Piv txwv ntawm Solar Cable thiab Hlau Sizing
Cia peb xav txog qhov system nrog 500W hnub ci vaj huam sib luag:
Qhov hluav taws xob: Txhua lub vaj huam sib luag ua haujlwm ntawm 50V.
Tam sim no: 500W÷50V=10A500W \div 50V=10A500W÷50V=10A rau ib lub vaj huam sib luag.
Yog hais tias 10 panels txuas nyob rau hauv parallel, tag nrho tam sim no yog 10A × 10=100A10A \times 10=100A10A × 10=100A. Hauv qhov no:
Hnub ci cables txuas cov vaj huam sib luag rau lub thawv sib txuas yuav tsum tau ntsuas tsawg kawg yog 100A.
Rau txoj hlua hluav taws xob ntawm 500V, cov cables yuav tsum tau txhawb nqa qhov hluav taws xob no.
Cov Vaj Huam Sib Luag Loj dua vs. Cov Vaj Huam Sib Luag Me
Txawm hais tias cov vaj huam sib luag loj dua yuav zoo li zoo dua vim lawv cov khoom siv hluav taws xob ntau dua, cov vaj huam sib luag me muaj lawv tus kheej zoo. Nov yog kev sib piv:
| Yam | Cov Panels loj dua | Cov Panels me |
|---|---|---|
| Fais fab tso zis | Siab dua rau ib lub vaj huam sib luag | Tsawg rau ib lub vaj huam sib luag |
| Space Efficiency | Yuav tsum muaj qhov chaw tsawg dua | Xav tau ntau panels rau tib cov zis |
| Tus nqi installation | Tsawg dua (tsawg dua vaj huam sib luag thiab kev sib txuas) | Siab dua (ntau lub vaj huam sib luag thiab kev sib txuas) |
| Cov Kev Cai Cable | Thicker solar cables thiab xaim | Thinner cables yuav txaus |
| Yooj yim | Limited (tso tsawg lub ru tsev tsim) | Ntau adaptable rau complex layouts |
| Kev tu | Yooj yim (tsawg dua cov khoom) | Kev sib txuas ntxiv los tswj |
Thaum twg Panels loj dua?
Qhov chaw txwv: Cov vaj huam sib luag loj dua yog qhov zoo tshaj plaws rau kev teeb tsa nrog qhov chaw txwv, xws li lub ru tsev me me lossis thaj chaw uas yuav tsum muaj lub zog ntau tshaj plaws.
Kev lag luam tej yaam num: Rau cov phiaj xwm loj, cov vaj huam sib luag loj dua txo lub sijhawm teeb tsa thiab cov nqi.
Simplified Maintenance: Tsawg dua panels txhais tau tias tsawg dua cov ntsiab lus ntawm kev ua tsis tiav, txo cov nqi tu mus sij hawm ntev.
Thaum twg Cov Panels me dua?
Siv tau yooj yim Installation Areas: Cov vaj huam sib luag me me ua haujlwm zoo rau lub ru tsev tsis zoo lossis kev teeb tsa me me.
Tus nqi pib qis dua: Tej zaum lawv yuav pheej yig dua rau cov tswv tsev uas xav pib me me thiab nthuav dav tom qab.
String Design Flexibility: Cov vaj huam sib luag me me tso cai rau ntau txoj hlua customizable.
Kev cuam tshuam rau qhov System Efficiency
Qhov kev ua tau zoo nyob ntawm qhov kev xaiv zoo ntawm cov hnub ci cables thiab cov xov hlau rau lub vaj huam sib luag xaiv loj. Cov vaj huam sib luag loj uas tsim cov dej ntws siab dua yuav tsum tau ua tib zoo saib xyuas:
Minimizing Voltage poob: Siv cov kab tuab tuab rau kev ua haujlwm ntev.
Tiv thaiv overheating: Xaiv cov cables uas tsim nyog ampacity.
Txo cov hluav taws xob poob: High-quality tooj liab cables nyiam rau lawv cov conductivity.
Kev xav txog kev nyab xeeb
Thaum txhim kho cov vaj huam sib luag loj, xyuas kom meej tias hnub ci cables thiab cov xov hlau raug ntsuas rau:
Kub Resistance: Txhawm rau tswj cov cua sov uas tsim los ntawm cov dej ntws siab dua.
Kev tiv thaiv UV: Rau kev teeb tsa sab nraum zoov.
Mechanical Durability: Kom tiv taus ib puag ncig kev nyuaj siab.
Tsis tas li ntawd, siv cov connectors tsim nyog thiab fuses los tiv thaiv overcurrent lossis luv circuits.
