Xaiv txoj cai TPS cable rau koj qhov kev teeb tsa hluav taws xob yog qhov tseem ceeb kom ntseeg tau tias muaj kev nyab xeeb thiab ua haujlwm tau zoo. TPS cables, los yog Thermoplastic Sheathed cables, yog dav siv rau ntau yam kev siv vim lawv yooj, durability, thiab txhim khu kev qha hluav taws xob kev ua tau zoo. Xaiv qhov tsim nyog TPS hluav taws xob cable suav nrog ntau qhov kev txiav txim siab tseem ceeb, suav nrog cable qhov loj, cov khoom siv rwb thaiv tsev, sheath, ntsuas kub, thiab cov kev xav tau tshwj xeeb. Hauv tsab xov xwm no, peb yuav taug kev los ntawm qhov tseem ceeb ntawm TPS cables, muab kev taw qhia txog yuav ua li cas xaiv qhov zoo tshaj plaws TPS cable lossis ca TPS cable rau koj cov kev xav tau tshwj xeeb.
TPS Cable yog dab tsi?
TPS cable yog ib hom hluav taws xob cable feem ntau siv rau kev siv hluav taws xob dav dav. Nws muaj ib los yog ntau dua conductors them los ntawm ib tug insulating khoom thiab ib tug txheej sheath. TPS cables feem ntau yog siv rau cov ntawv siv hluav taws xob tsawg hauv thaj chaw, kev lag luam, thiab chaw tsim khoom. Lawv nyiam rau lawv cov durability, yooj, thiab yooj yim ntawm installation.
TPS cable feem ntau suav nrog:
Tus neeg xyuas pib:Cov khoom siv hluav taws xob sab hauv, uas feem ntau yog ua los ntawm tooj liab lossis txhuas. Qhov no ntawm lub cable nqa hluav taws xob tam sim no rau cov khoom siv txuas nrog.
Rwb thaiv tsev:Nyob ib puag ncig cov conductors, cov khoom siv rwb thaiv tsev tiv thaiv luv luv thiab hluav taws xob shocks. PVC (Polyvinyl Chloride) feem ntau yog siv rau rwb thaiv tsev, txawm hais tias lwm cov ntaub ntawv xws li LSZH (Low Smoke Zero Halogen) kuj tuaj yeem xaiv rau cov kev cai tshwj xeeb.
Sheath:Lub npog sab nrauv tiv thaiv cov kab hluav taws xob los ntawm ib puag ncig xws li ya raws, kev puas tsuaj, thiab UV raug. Cov ntaub qhwv tuaj yeem ua los ntawm PVC, LSZH, lossis lwm yam khoom tshwj xeeb.
Flat TPS cables yog ib hom TPS cable uas muaj cov qauv tsim. Cov cables no tshwj xeeb tshaj yog muaj txiaj ntsig zoo hauv cov ntawv thov uas xav tau kev tsim qauv yooj yim thiab txuag chaw.
Kev txiav txim siab tseem ceeb rau kev xaiv TPS Cable Specifications
Thaum xaiv qhov tsim nyog TPS cable rau ib daim ntawv thov, nws yog ib qho tseem ceeb uas yuav tau xav txog ntau yam kev qhia tshwj xeeb, suav nrog cov khoom siv hluav taws xob, qhov loj, hom rwb thaiv tsev, cov khoom siv sheath, thiab qhov ntsuas kub. Txhua yam ntawm cov khoom no ua lub luag haujlwm tseem ceeb hauv kev txiav txim siab ntawm cable kev ua haujlwm, kev ua haujlwm ntev, thiab tsim nyog rau txoj haujlwm.
1. Cov khoom siv hluav taws xob
Cov khoom siv hluav taws xob hauv TPS cov khoom siv hluav taws xob txiav txim siab seb lub cable tuaj yeem xa hluav taws xob tau zoo li cas. Cov khoom siv feem ntau siv rau TPS cables yog tooj liab thiab txhuas.
Copper conductors: Copper yog cov khoom siv ntau tshaj plaws thiab nyiam cov neeg siv khoom. Nws muaj cov khoom siv hluav taws xob zoo heev, ua haujlwm ntev, thiab kev ua haujlwm siab. Copper kuj tseem tiv taus corrosion thiab qaug zog, ua rau nws zoo tagnrho rau kev siv ntau yam kev teeb tsa, tshwj xeeb tshaj yog nyob rau hauv qhov kev thov siab. Rau ntau daim ntawv thov, tooj liab yog cov khoom siv uas nyiam tshaj plaws.
Aluminium Conductors: Thaum txhuas tsis tshua muaj hluav taws xob ntau dua tooj liab, nws yog sib dua thiab tsis tshua muaj nqi. Aluminium conductors tsim nyog rau qee yam kev siv uas tus nqi yog qhov tseem ceeb, thiab kev txo qhov hnyav yog qhov tseem ceeb, xws li hauv cov kab hluav taws xob overhead. Txawm li cas los xij, aluminium conductors xav tau cov kab loj dua los nqa tib yam tam sim no xws li tooj liab thiab tej zaum yuav muaj kev cuam tshuam ntau dua rau oxidation.
Thaum xaiv ntawm tooj liab thiab txhuas, nws yog ib qho tseem ceeb rau kev ntsuam xyuas cov kev xav tau ntawm cov khoom siv hluav taws xob, ib puag ncig, thiab kev txwv nyiaj txiag ntawm qhov project.
2. Cable Loj thiab qhov ntsuas tam sim no
Qhov loj ntawm TPS cable ( ntsuas hauv square millimeters, lossis mm²) yog hais txog thaj tsam ntawm tus neeg xyuas pib, uas txiav txim siab tus nqi tam sim no lub cable tuaj yeem nqa tau zoo. Xaiv qhov loj ntawm cable yog qhov tseem ceeb los xyuas kom muaj kev nyab xeeb thiab ua haujlwm tau zoo.
Lub peev xwm nqa tam sim no: Qhov loj ntawm cable ncaj qha cuam tshuam nws lub peev xwm nqa hluav taws xob tam sim no. Ib lub cable uas me dhau rau qhov tam sim no nws txhais tau hais tias nqa tuaj yeem ua rau overheat, ua rau cov rwb thaiv tsev degradation, luv circuits, lossis hluav taws kub. Qhov ntsuas tam sim no ntawm lub cable yuav tsum phim qhov siab tshaj plaws tam sim no uas yuav ntws los ntawm cov xaim, xav txog cov cuab yeej lossis cov khoom siv lub zog cable.
Voltage poob: Cov kab hluav taws xob ntev ua rau muaj qhov poob siab dua, uas txhais tau hais tias qhov hluav taws xob nkag mus rau cov khoom siv txuas nrog txo qis raws li qhov tam sim no ntws los ntawm cable. Txhawm rau txo qis qhov poob qis, cov kab loj dua kab hluav taws xob (qhov loj dua tus neeg xyuas pib hla ntu) yuav tsum tau nyob ntev dua.
Short Circuit Rating: Xav txog qhov luv-circuit ntsuas ntawm lub cable, uas yog qhov siab tshaj plaws tam sim no lub cable tuaj yeem tiv taus thaum lub caij luv luv yam tsis muaj kev puas tsuaj. Qhov no yog tshwj xeeb tshaj yog ib qho tseem ceeb nyob rau hauv cov kab ke nrog ntau dua faults tam sim no.
3. Cov khoom siv rwb thaiv tsev
Cov khoom siv rwb thaiv tsev yog qhov tseem ceeb vim nws ua kom muaj kev nyab xeeb los ntawm kev tiv thaiv hluav taws xob tsis zoo xws li luv luv Circuit Court lossis hluav taws xob shocks. Feem ntau cov ntaub ntawv rwb thaiv tsev rau TPS cables yog PVC thiab LSZH.
PVC rwb thaiv tsev: PVC (Polyvinyl Chloride) rwb thaiv tsev yog qhov kev xaiv dav tshaj plaws thiab siv tau zoo rau TPS hluav taws xob cables. Nws muab hluav taws xob rwb thaiv tsev zoo, yog nplaim hluav taws, thiab tiv taus ib puag ncig yam xws li ya raws thiab tshuaj. PVC yog qhov tsim nyog rau kev teeb tsa dav dav hauv thaj chaw, kev lag luam, thiab kev lag luam.
LSZH rwb thaiv tsev: LSZH (Low Smoke Zero Halogen) rwb thaiv tsev yog tsim los txo cov pa taws thiab cov pa pa phem thaum muaj hluav taws kub. LSZH cables yog qhov zoo tagnrho rau siv nyob rau hauv ib puag ncig uas kev nyab xeeb yog qhov tseem ceeb, xws li hauv tsev kho mob, tshav dav hlau, tsev kawm ntawv, thiab cov chaw pej xeem. Txawm hais tias LSZH cables zoo li yuav kim dua li PVC, lawv muab kev ruaj ntseg hluav taws zoo thiab yuav tsum tau ua los ntawm qee cov kev cai hauv thaj chaw muaj kev pheej hmoo siab.
Lwm yam rwb thaiv tsevHom: Nyob ntawm qhov kev xav tau tshwj xeeb ntawm kev teeb tsa, lwm yam khoom siv rwb thaiv tsev yuav tsim nyog. Piv txwv li, XLPE (Cross-Linked Polyethylene) los yog EPR (Ethylene Propylene Rubber) yog siv nyob rau hauv high-temperature los yog chemical-resistant ib puag ncig.
4. Cov ntaub qhwv ntaub
Sab nrauv ntawm TPS cable muab kev tiv thaiv txhua yam, ua kom cov khoom sab hauv kom tsis txhob muaj kev puas tsuaj rau lub cev, ib puag ncig raug, thiab hnav. Cov ntaub ntawv sheath kuj tseem ua lub luag haujlwm hauv kev txiav txim siab ntawm cable qhov hloov tau yooj yim, ua haujlwm ntev, thiab tiv thaiv UV raug.
PVC Sheath: PVC sheath yog qhov kev xaiv tshaj plaws rau TPS cables, muab kev tiv thaiv zoo tiv thaiv lub cev puas tsuaj thiab ib puag ncig zoo li UV rays, tshuaj lom neeg, thiab ya raws. Nws kuj yog tus nqi tsim nyog, ua rau nws haum rau feem ntau cov ntawv thov sab hauv.
LSZH daim: LSZH sheaths yog tsim los ua kom tau raws li cov qauv kev nyab xeeb dua hluav taws, emitting me ntsis kom tsis muaj pa taws thiab tsis muaj halogen gases thaum combustion. Hom sheath no zoo tagnrho rau cov chaw kaw, thaj chaw pej xeem, thiab thaj chaw uas muaj kev tiv thaiv hluav taws nruj heev.
Rubber Sheath: Hauv qee qhov chaw, lub hnab roj hmab tuaj yeem siv los ua kom muaj zog ntxiv, tshwj xeeb tshaj yog rau kev siv sab nraum zoov lossis chaw ua lag luam uas lub cable yuav ntsib kev nyuaj siab, kev puas tsuaj, lossis qhov kub thiab txias.
Thaum xaiv cov ntaub qhwv, xav txog qhov chaw teeb tsa thiab seb lub cable puas yuav raug mob hnyav, tshuaj lom neeg, lossis huab cua huab cua.
5. Kev ntsuas kub
Qhov ntsuas kub ntawm TPS cable qhia txog qhov kub thiab txias uas lub cable tuaj yeem ua haujlwm zoo. Cov ntawv thov sib txawv yuav xav tau cov cables uas tuaj yeem tiv taus qhov kub siab dua lossis qis dua.
Standard Temperature Range: Feem ntau TPS cables raug ntsuas rau kev siv kub ntawm -15 degree thiab 70 degree . Qhov ntsuas kub no yog tsim rau feem ntau cov tsev nyob sab hauv tsev thiab kev lag luam thaiv kev teeb tsa.
Ib puag ncig kub kub: Hauv cov ntawv thov kev lag luam lossis thaj chaw uas muaj cua sov siab, ib lub cable uas muaj qhov ntsuas kub siab dua (piv txwv li, 90 degree lossis 105 degree) yuav tsum tiv thaiv kom tsis txhob muaj cua sov thiab ua kom muaj kev nyab xeeb.
Kev siv huab cua txias: Rau cov cheeb tsam uas muaj huab cua txias heev, TPS cables tsim los nrog cov ntaub ntawv tshwj xeeb uas tsis tshua muaj hluav taws xob rwb thaiv tsev tuaj yeem ua tau yooj yim thiab ua haujlwm ntawm qhov kub qis.
6. Cable Flexibility thiab Installation Conditions
Nyob ntawm qhov chaw teeb tsa, kev hloov pauv ntawm cable yuav yog qhov tseem ceeb. Piv txwv li, yog tias lub cable xav tau los ntawm qhov chaw nruj lossis nyob ib ncig ntawm cov ces kaum, yuav tsum muaj qhov hloov tau yooj yim TPS cable.

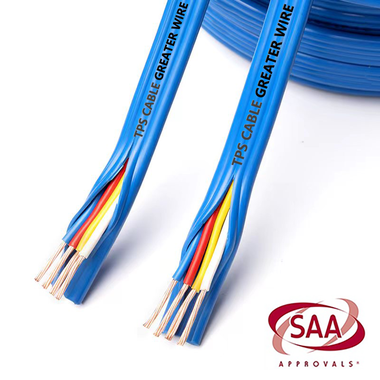

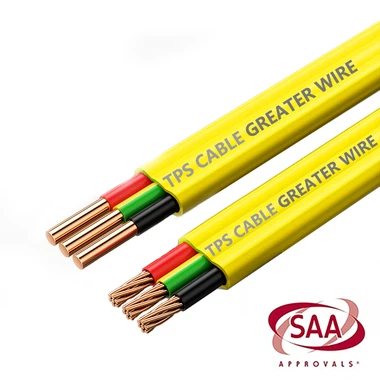

Pav ca TPS Cables: Flat TPS cables yog tsim los muab cov khoom siv qis, hloov tau yooj yim, thiab txuag chaw. Cov kab hluav taws xob no zoo tagnrho rau kev teeb tsa hauv qhov chaw kaw, hauv qab hauv pem teb, lossis nyob rau hauv cov phab ntsa uas cov kab ib txwm puag ncig yuav nyuaj rau nruab. Flat TPS cables muab qhov zoo ntawm kev yooj yim ntawm kev teeb tsa yam tsis muaj kev cuam tshuam rau kev ua haujlwm hluav taws xob.
Khoov Radius: Lub vojvoog khoov ntawm lub cable hais txog qhov tsawg kawg nkaus lub vojvoog uas lub cable tuaj yeem khoov yam tsis muaj kev puas tsuaj rau tus neeg xyuas pib lossis kev rwb thaiv tsev. Xyuas kom meej tias cov kab hluav taws xob khoov lub vojvoog haum rau koj qhov chaw teeb tsa, tshwj xeeb hauv cov cheeb tsam uas muaj qhov chaw tsawg.
7. Ua raws li cov qauv
Nws yog ib qho tseem ceeb los xaiv TPS cables uas ua raws li cov qauv hluav taws xob hauv cheeb tsam kom muaj kev nyab xeeb, kev ntseeg siab, thiab kev ua haujlwm.
International StandardsCov qauv thoob ntiaj teb rau TPS cables suav nrog IEC 60227 rau cov hluav taws xob qis thiab IEC 60502 rau cov hluav taws xob cable. Xyuas kom meej tias lub cable ua tau raws li cov qauv tsim nyog hauv koj lub tebchaws lossis cheeb tsam.
Daim ntawv pov thawj kev nyab xeeb: Ntxiv nrog rau cov qauv kev ua haujlwm, xav txog cov ntawv pov thawj kev nyab xeeb tsim nyog, xws liUL(Underwriters Laboratories) hauv Tebchaws Meskas lossis CE (Conformité Européenne) hauv Tebchaws Europe.
