Thaum tsim thiab txhim kho lub hnub ci hluav taws xob, xaiv txoj cai cable loj yog qhov tseem ceeb rau kev ua kom muaj txiaj ntsig, kev nyab xeeb, thiab kev ua haujlwm ntev. Ntawm cov feem ntau siv hnub ci cable ntau thiab tsawg, 4mm² thiab 6mm² hnub ci cables yog cov kev xaiv nrov. Kev nkag siab txog qhov sib txawv ntawm qhov loj me ntawm cov kab no tuaj yeem pab txiav txim siab raws li qhov yuav tsum tau ua hauv lub cev.
Kab lus no qhia txog qhov sib txawv tseem ceeb ntawm 4mm thiab 6mm hnub ci cables, tsom mus rau lawv cov kev qhia tshwj xeeb, kev ua haujlwm, thiab kev siv.
Dab tsi yog Solar Cable?

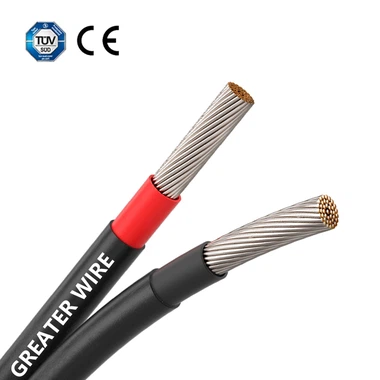

Lub hnub ci cable (los yog hnub ci xaim) yog ib qho hluav taws xob tsim tshwj xeeb rau cov tshuab photovoltaic (PV). Nws txuas cov hnub ci vaj huam sib luag, inverters, thiab roj teeb, xa cov hluav taws xob tsim tau zoo thiab nyab xeeb. Hnub ci cables yog tsim los tiv thaiv ib puag ncig hnyav thiab nqa high voltages hauv DC systems.
Cov yam ntxwv tseem ceeb ntawm solar cables muaj xws li:
UV thiab huab cua tsis kam:Haum rau kev teeb tsa sab nraum zoov.
Durability:Resistant mus rau kub, av noo, thiab mechanical stress.
Kev ntsuas hluav taws xob:Txog li 1500V DC.
Flexibility:Tsim kom yooj yim rau nruab thiab taug kev.
Cov qauv zoo li H1Z2Z2-K thiab PV1-F xyuas kom cov hnub ci cables ua tau raws li kev ua tau zoo thiab kev nyab xeeb.
Nkag siab txog 4mm² thiab 6mm² Solar Cables
1. Hla-Sectional Area
Thawj qhov sib txawv ntawm 4mm² thiab 6mm² hnub ci cables nyob hauv lawv qhov chaw hla.
4mm :wb.Tus neeg xyuas pib thaj tsam yog 4 square millimeters.
6mm :wb.Tus neeg xyuas pib thaj tsam yog 6 square millimeters.
Qhov loj dua tus neeg xyuas pib ntawm 6mm² cable tso cai rau nws nqa tam sim no ntau dua li 4mm² cable, ua rau nws tsim nyog rau kev siv hluav taws xob ntau dua.
2. Tam sim no-Carrying Peev Xwm
Lub ampacity (qhov siab tshaj plaws tam sim no ib lub cable tuaj yeem nqa tau zoo) nyob ntawm cov khoom xws li cov khoom siv, kev teeb tsa, thiab qhov kub thiab txias.
| Cable Loj | Tam sim no muaj peev xwm (H1Z2Z2-K) | Tam sim no muaj peev xwm(PV1-F) |
|---|---|---|
| 4mm qw | Txog li 55A | Txog li 44A |
| 6mm 2 kwg | Txog li 70A | Mus txog 57A |
Qhov muaj peev xwm tam sim no ntawm 6mm² cables ua rau lawv zoo dua rau cov tshuab loj lossis cov xwm txheej uas tam sim no ntws siab.
3. Voltage poob
Voltage poob yog qhov tseem ceeb hauv kev teeb tsa hnub ci. Nws hais txog qhov poob ntawm qhov hluav taws xob thaum hluav taws xob taug kev los ntawm cable.
4mm² Hnub ci Cable:Muaj kev cuam tshuam ntau dua qhov kev poob qis dua qhov kev ncua ntev vim qhov me me ntawm tus neeg xyuas pib.
6mm² Hnub ci Cable:Kev paub txog kev poob qis qis, ua rau nws tsim nyog rau kev siv cable ntev dua.
Piv txwv li, ib lub kaw lus nrog 20-meter cable khiav yuav muaj qhov tsis zoo ntawm qhov hluav taws xob siv 4mm² cables tab sis tsawg kawg poob nrog 6mm² cables.
4. Hwj chim tuav peev xwm
Lub hwj chim (kW) lub hnub ci cable tuaj yeem ua haujlwm ntawm nws qhov ampacity thiab qhov system voltage:
Lub zog (kW) =V (V) × Tam sim no (A) ÷ 1000
| Cable Loj | Hauv 1000V DC | Hauv 500V DC |
|---|---|---|
| 4mm qw | 55 kW ib | 27.5 kWm |
| 6mm 2 kwg | 70 kW ib | 35 kW |
Rau cov tshuab uas xav tau kev hloov hluav taws xob ntau dua, 6mm² cables muaj txiaj ntsig zoo dua thiab muaj kev nyab xeeb dua.
5. Nyhav thiab Flexibility
4mm² Solar Cables:Lub teeb thiab hloov tau yooj yim, ua rau lawv yooj yim rau nruab thiab ua haujlwm, tshwj xeeb tshaj yog nyob rau hauv cov kab ke.
6mm² Solar Cables:Hnyav thiab tsis yoog raws tab sis tsim nyog rau kev teeb tsa loj dua.
Daim ntawv thov ntawm 4mm² thiab 6mm² Solar Cables
4mm² Solar Cables
Residential Solar Systems:Haum rau me me mus rau nruab nrab-qhov loj me installation nrog luv cable khiav.
Cov ntawv thov tam sim no qis:Qhov zoo tshaj plaws rau cov tshuab uas tam sim no qis dua 55A thiab qhov hluav taws xob poob tsis yog qhov kev txhawj xeeb loj.
Txoj hlua txuas:Feem ntau siv los txuas cov hnub ci vaj huam sib luag hauv ib qho array.
6mm² Solar Cables
Commercial thiab Industrial Systems:Haum rau kev teeb tsa loj dua qhov twg tam sim no ntws tshaj 55A.
Ntev Cable khiav:Pom zoo rau cov tshuab nrog kev ncua ntev ntawm cov panels thiab inverters, txo qis voltage poob.
High Power Applications:Ua kom muaj zog ntau dua, ua rau nws tsim nyog rau kev siv hluav taws xob hnub ci ua liaj ua teb.
Xaiv Txoj Cai Solar Cable
Qhov System Voltage thiab Tam sim no:
Txiav txim siab qhov kev khiav hauj lwm voltage thiab tam sim no ntawm koj lub cev. Yog tias qhov tam sim no tshaj qhov muaj peev xwm ntawm 4mm² cable, xaiv rau 6mm² cable.
Cable khiav nrug:
Rau kev ncua ntev, 6mm² cables yog qhov zoo dua los txo qis voltage poob thiab tswj kev ua haujlwm zoo.
Load Requirements:
Cov tshuab nrog lub zog siab dua xav tau txais txiaj ntsig los ntawm qhov muaj peev xwm ntawm 6mm² cables.
Installation Ib puag ncig:
Ob hom cable yog huab cua-resistant, tab sis xyuas kom lawv ua raws li cov qauv zoo li H1Z2Z2-K lossis PV1-F rau sab nraum zoov siv.
Tus nqi thiab kev xav tau
Tus nqi:
6mm² hnub ci cables kim dua 4mm² cables vim yog cov khoom siv tooj liab ntxiv.
Yooj yim ntawm installation:
Qhov yooj yim thiab sib zog ntawm 4mm² cables ua rau lawv yooj yim rau nruab, tshwj xeeb tshaj yog nyob rau hauv cov chaw compact.
Kev pov thawj yav tom ntej:
Yog tias koj cia siab tias yuav nthuav koj lub hnub ci, kev nqis peev hauv 6mm² cables tuaj yeem muab lub peev xwm tsim nyog yam tsis tas yuav hloov pauv tom qab.
Feem ntau yuam kev hauv kev xaiv hnub ci Cable
Undersized Cables:
Siv 4mm² cables rau cov tshuab uas xav tau ntau dua tam sim no tuaj yeem ua rau overheating, txo efficiency, thiab muaj kev nyab xeeb.
Ignoring Voltage poob:
Kev ua tsis tiav ntawm qhov kev ncua deb tuaj yeem ua rau muaj kev poob zog loj, tshwj xeeb tshaj yog hauv cov tshuab loj.
Overestimating Requirements:
Siv 6mm² cables tsis tsim nyog hauv cov tshuab me tuaj yeem nce nqi yam tsis muaj txiaj ntsig ntxiv.
