Royal Cord Hlau

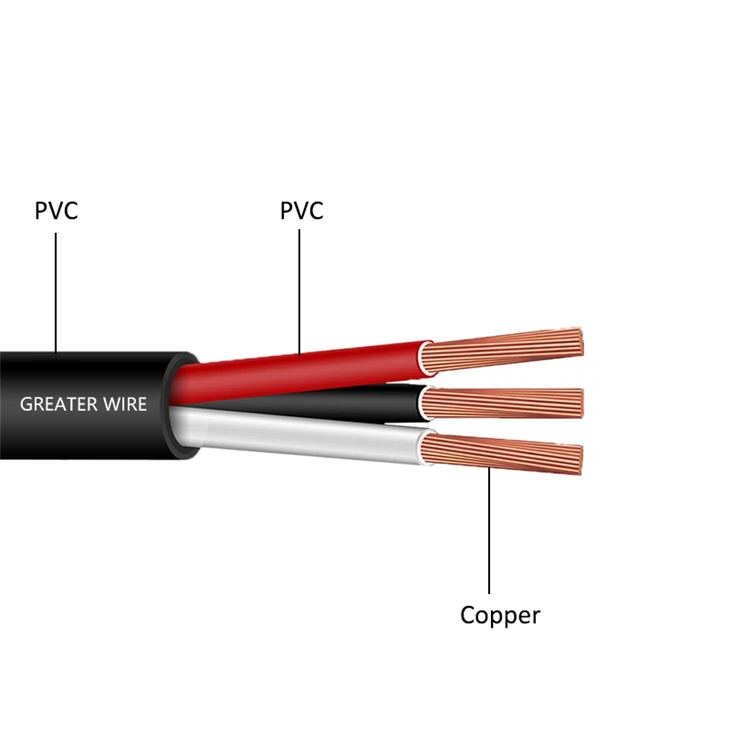

● Tus neeg xyuas pib: Ob, peb, lossis plaub muag muag bunched / ropelay tooj liab conductors

● Rwb thaiv tsev: Polyvinyl Chloride (PVC) Lead Dawb

● Jacket: Polyvinyl Chloride (PVC) Lead Dawb

● Voltage: 300 Volts(0.75 mm²-3.5 mm²)

600V (5.5mm² -30 mm²)

● Qhov kub siab tshaj plaws: 60 degree

● Kev Qhia Tshwj Xeeb: PNS 163

UL62 ua

PEC

ICEA specification

Daim ntawv thov

Royal cord hlau yog ntau yam thiab ruaj khov cable tsim rau cov tshuab hluav taws xob qis. Nws feem ntau yog siv los ua cov khoom siv hluav taws xob, xaim xwm txheej ceev, lossis rau hauv lub tsev thaiv hauv circuits nrog qhov ntsuas hluav taws xob txog li 300 volts (rau qhov ntau thiab tsawg ntawm 0.75 mm² txog 3.5 mm²) thiab 600 volts (rau qhov ntau thiab tsawg los ntawm 5.5 mm² txog 30 mm²). Nrog rau qhov ntsuas kub siab tshaj plaws ntawm 60 degree, muaj koob muaj npe qaum ua kom muaj kev nyab xeeb thiab ua haujlwm tau zoo txawm tias nyob rau hauv kev xav tau.

Feature

Noob nom noob tswv cord hlau yog ib qho yooj yim bundles / hlua ntawm ob, peb los yog plaub tooj liab conductors uas muab zoo heev conductivity thiab yooj. Lub rwb thaiv tsev thiab lub tsho yog encased nyob rau hauv ib tug check-free polyvinyl chloride (PVC) txheej txheej rau ntxiv tiv thaiv puas thiab ib puag ncig yam. Ua raws li cov qauv kev lag luam xws li PNS 163, UL62, PEC thiab ICEA specifications thiab tsim nyog rau cov kab hluav taws xob tsawg tsawg.

Daim ntawv pov thawj

Royal cord hlau tau ua tiav dhau BPS daim ntawv pov thawj. Lub cable siv cov hlau lead-dawb polyvinyl chloride (PVC) rwb thaiv tsev thiab sheath, uas tsis tsuas yog ua kom muaj kev nyab xeeb ntawm kev sib txuas hluav taws xob, tab sis kuj ua tau raws li kev tiv thaiv ib puag ncig. Nws cov mos tensile stranded tooj liab conductor excels nyob rau hauv siab yooj thiab zoo heev conductivity, thiab yog haum rau cov khoom siv hluav taws xob uas yuav tsum tau nquag khoov thiab txav. Lub cable tau dhau ntau yam kev xeem thiab tau txais ntawv pov thawj los xyuas kom meej tias nws ua tau raws li cov kev cai thoob ntiaj teb hais txog kev nyab xeeb, kev ua tau zoo thiab kev hloov pauv ib puag ncig.

Pob

royal cord wire package

Hoobkas

Dongguan Greater Wire & Cable Co., Ltd. yog tsim nyob rau hauv 1995, nws yog ib tug kws tshaj lij hlau thiab cable chaw tsim tshuaj paus. Peb lub tuam txhab muaj cov cuab yeej siv ntau lawm thiab cov cuab yeej tsim khoom, ua tiav cov khoom siv, thiab cov khoom siv tshuab muaj zog. Tom qab xyoo ntawm kev ua haujlwm hnyav thiab kev txhawb nqa ntawm cov neeg siv khoom los ntawm thoob plaws lub ntiaj teb, peb lub tuam txhab tau tsim kho sai thiab yeej muaj kev hwm thiab koom nrog kev lag luam txawv teb chaws. Lub tuam txhab tau dhau ls09001 kev tswj hwm kev ua haujlwm tau ntawv pov thawj, National high tech enterprise certification, national specialization, and special new enterprise certification.

Case

wire and cable Company cases

Tus khub

greater wire Partner

FAQ

Q: Royal cord yog dab tsi?

A: Royal cord yog ib hom hluav taws xob cable feem ntau siv rau cov ntawv siv hluav taws xob tsawg uas xav tau kev hloov pauv thiab ua haujlwm ntev. Nws cov qauv tsim thiab cov khoom siv sib xyaw ua rau nws tsim nyog rau ntau qhov chaw nyob qhov twg kev txav mus los, kev txav mus los, lossis nquag khoov yog qhov tsim nyog.

Q: Puas yog Royal cord weatherproof?

A: Royal cord feem ntau tsis yog huab cua tsis zoo. Nws yog tsim los siv rau sab hauv tsev thiab feem ntau siv rau hauv cov khoom siv hluav taws xob thiab hluav taws xob thaum muaj xwm txheej ceev thiab tsis yog tsim tshwj xeeb los tiv thaiv sab nraum zoov xws li ya raws, UV raug, lossis kub heev.

Q: Puas yog Royal cord submersible?

A:Tsis yog, Royal cords tsis yog submersible. Polyvinyl chloride (PVC) rwb thaiv tsev thiab lub tsho tiv thaiv kev tiv thaiv kev puas tsuaj thiab cov av noo ib puag ncig, tab sis tsis yog tsim los rau lub sijhawm ntev ntawm dej los yog kev ua haujlwm hauv qab dej.

Cim npe nrov: Tuam Tshoj Royal cord hlau manufacturers, lwm tus neeg, Hoobkas

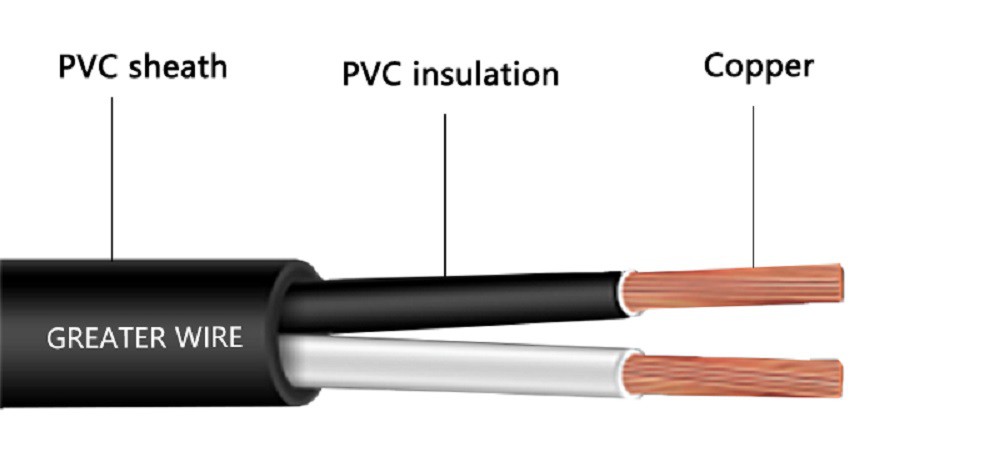

royal cord specification

300V, 60 degree,2 Cov neeg ua haujlwm,Flexible Bunched Copper

Qhov loj ntawm tus neeg xyuas pib		No. & Nominal Diameter ntawm Hlau	PVC rwb thaiv tsev Thickness	Jacket Thickness	Kwv yees tag nrho txoj kab uas hla	Nominal Nyhav
MM	Kwv yees AWG		MM	MM	MM	KG/KM
0.75mm2	18	3 0x 0.18mm	0.80	1.00	7.4	74.16
1.25mm 2	16	5 0x 0.18mm	0.80	1.00	8.20	95.43
2 0mm2	14	37 x 1.26 mm	0.80	1.00	8.80	117.69
3.5mm 2	12	45 x 1.32 mm	0.80	1.20	10.60	181.44

300 VOLTS, 60 degree, 3 Tus neeg xyuas pib, Flexible Bunched Copper

Qhov loj ntawm tus neeg xyuas pib		No. & Nominal Diameter ntawm Hlau	PVC rwb thaiv tsev Thickness	Jacket Thickness	Kwv yees tag nrho txoj kab uas hla	Nominal Nyhav
MM	Kwv yees AWG		MM	MM	MM	KG/KM
0.75mm2	18	3 0x 0.18mm	0.80	1.00	7.83	87.56
1.25mm 2	16	5 0x 0.18mm	0.80	1.00	8.70	114.41
2 0mm2	14	37 x 1.26 mm	0.80	1.00	9.34	143.69
3.5mm 2	12	45 x 1.32 mm	0.80	1.20	11.26	224.53

300 VOLTS, 60 degree, 4 Tus neeg xyuas pib, Flexible Bunched Copper

Qhov loj ntawm tus neeg xyuas pib		No. & Nominal Diameter ntawm Hlau	PVC rwb thaiv tsev Thickness	Jacket Thickness	Kwv yees tag nrho txoj kab uas hla	Nominal Nyhav
MM	Kwv yees AWG		MM	MM	MM	KG/KM
0.75mm2	18	3 0x 0.18mm	0.80	1.00	8.53	106.36
1.25mm 2	16	5 0x 0.18mm	0.80	1.00	9.50	140.54
2 0mm2	14	37 x 1.26 mm	0.80	1.00	10.23	178.15
3.5mm 2	12	45 x 1.32 mm	0.80	1.20	12.32	279.90

600 VOLTS, 75 degree, 2 Tus neeg xyuas pib, Flexible Bunched / Ropelay Copper

Qhov loj ntawm tus neeg xyuas pib		No. & Nominal Diameter ntawm Hlau	PVC rwb thaiv tsev Thickness	Jacket Thickness	Kwv yees tag nrho txoj kab uas hla	Nominal Nyhav
MM	Kwv yees AWG		MM	MM	MM	KG/KM
0.75mm2	18	3 0x 0.18mm	0.80	1.14	7.76	66.77
1.25mm 2	16	5 0x 0.18mm	0.80	1.14	8.56	84
2 0mm2	14	37 x 1.26 mm	1.14	1.14	10.52	122.62
3.5mm 2	12	45 x 1.32 mm	1.14	1.14	11.92	168.36
5.5mm 2	10	7 x 0.32 mm	1.14	1.4	13.04	213.53
8. 0mm2	8	7 x 14 x 2 x 32 mm	1.52	1.52	17.67	353.95
14mm 2	6	7 x 25 x 32 mm	1.52	1.52	20.42	518.12
22mm2 ua	4	7 x 39 x 2 x 32 mm	1.52	2.03	24.64	887.73
30mm 2	2	7 x 53 x 2 x 32 mm	1.52	2.03	26.84	1102.64

600 VOLTS, 75 degree, 3 Tus neeg xyuas pib, Flexible Bunched / Ropelay Copper

Qhov loj ntawm tus neeg xyuas pib		No. & Nominal Diameter ntawm Hlau	PVC rwb thaiv tsev Thickness	Jacket Thickness	Kwv yees tag nrho txoj kab uas hla	Nominal Nyhav
MM	Kwv yees AWG		MM	MM	MM	KG/KM
0.75mm2	18	3 0x 0.18mm	0.80	1.14	8.19	81.84
1.25mm 2	16	5 0x 0.18mm	0.80	1.14	9.05	107.66
2 0mm2	14	37 x 1.26 mm	1.14	1.14	11.17	160.71
3.5mm 2	12	45 x 1.32 mm	1.14	1.14	12.68	227.09
5.5mm 2	10	7 x 0.32 mm	1.14	1.52	14.74	320
8. 0mm2	8	7 x 14 x 2 x 32 mm	1.52	1.52	18.78	410.18
14mm 2	6	7 x 25 x 32 mm	1.52	2.03	22.82	837.18
22mm2 ua	4	7 x 39 x 2 x 32 mm	1.52	2.03	26.25	1159.16
30mm 2	2	7 x 53 x 2 x 32 mm	1.52	2.03	28.62	1468.98

600 VOLTS, 75 degree, 4 Tus neeg xyuas pib, Flexible Bunched / Ropelay Copper

Qhov loj ntawm tus neeg xyuas pib		No. & Nominal Diameter ntawm Hlau	PVC rwb thaiv tsev Thickness	Jacket Thickness	Kwv yees tag nrho txoj kab uas hla	Nominal Nyhav
MM	Kwv yees AWG		MM	MM	MM	KG/KM
0.75mm2	18	3 0x 0.18mm	0.80	1.14	8.89	101.84
1.25mm 2	16	5 0x 0.18mm	0.80	1.14	9.86	132.76
2 0mm2	14	37 x 1.26 mm	1.14	1.14	12.23	201.33
3.5mm 2	12	45 x 1.32 mm	1.14	1.52	14.69	314.62
5.5mm 2	10	7 x 0.32 mm	1.14	1.52	16.13	413.07
8. 0mm2	8	7 x 14 x 2 x 32 mm	1.52	1.52	20.66	687.41
14mm 2	6	7 x 25 x 32 mm	1.52	2.03	25.07	1054.37
22mm2 ua	4	7 x 39 x 2 x 32 mm	1.52	2.03	28.86	1469.48
30mm 2	2	7 x 53 x 2 x 32 mm	1.52	2.03	31.52	1857.33
