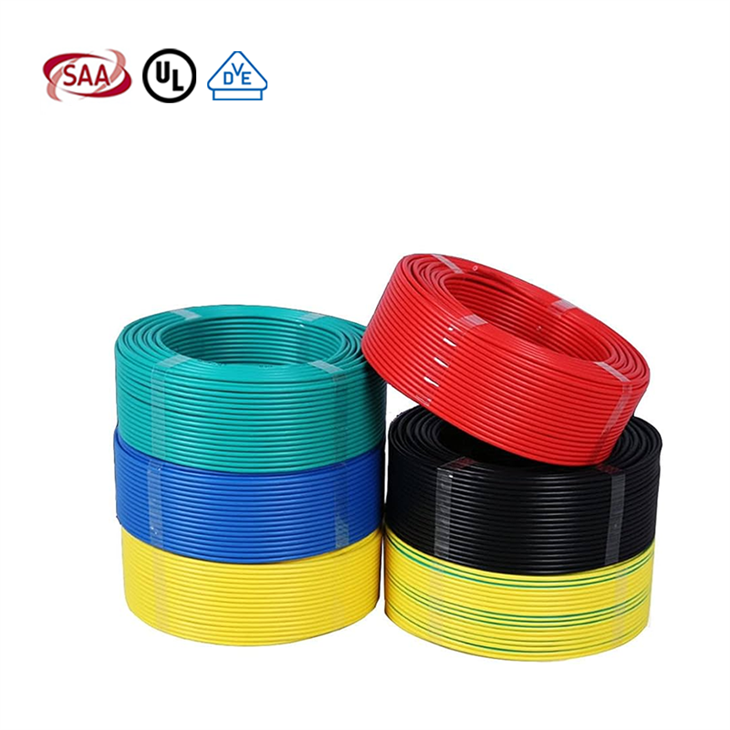

Loorivers: Khoom Muag Khoom Muag lossis Ntaus Cov Khoom Muag Liab
● Rwb thaiv tsev: polyvinyl chloride (PVC) txhuas-dawb
● Voltage: 600 volts
● Siv cov lus qhia tshwj xeeb:
Pns 35-1: 2004
UL 83
Rab phom
Nec
● Kub: Tsis pub dhau 60 degree hauv qhov chaw ntub lossis ntub dej
Daim ntawv thov
Lub tooj liab tooj liab yog qhov tsim rau hluav taws xob nrog cov hluav taws xob voltage tsis pub tshaj 600 volts. Nws rwb thaiv txheej txheej yog ua los ntawm cov khoom siv thermoplastic, uas yog dej tsis huv thiab tuaj yeem ua haujlwm nyab xeeb rau hauv cov chaw qhuav thiab noo. Nws yog tsim tshwj xeeb rau cov kev pabcuam uas cov neeg saib xyuas kub tsis tshaj li 60 degree. Nws yog dav siv nyob rau hauv teeb pom kev ncig ncig, so ntswg circuits thiab fais fab siv cov tshuab khoom lag luam hauv vaj tse nyob hauv tsev thiab yog qhov kev xaiv zoo tshaj plaws rau cov phiaj xwm hluav taws xob tsawg.
Yam zoo
TWPER HLAU SIV Cov khoom siv tooj liab lossis tawv tawv tooj liab tus neeg ua haujlwm nrog kev coj ua zoo los ua kom ruaj khov thiab muaj peev xwm kis tau zoo. Lead-dawb polyvinyl chloride (pvc) yog siv los ua cov ntaub ntawv rwb thaiv tsev, thiab muaj peev xwm tiv thaiv kev to taub tam sim no thiab sab nraud. Nws ua raws li pns 35-1}: 2004 (Hmoob (Philippine hluav taws xob code), UL
Daim ntawv muaj cai
Lub tooj liab tooj liab tau tau txais UL thiab BPS ntawv pov thawj, thiab ua raws li cov qauv ntawm Philippines Hluav Taws Xob (PEC). Qhov no ua pov thawj tias nws txoj kev ua haujlwm rwb, dej tsis kam thiab ua raws li cov qauv hluav taws xob hluav taws xob. Txawm hais tias nyob rau hauv qhuav lossis noo ib puag ncig, tw xaim tuaj yeem ua haujlwm pub dawb thiab muab kev nyab xeeb rau lub zog hluav taws xob. Dhau cov ntawv pov thawj UL thiab BPS tuaj yeem ua lag luam thiab ua raws li kev lag luam Philippine rau cov khoom lag luam hauv zos kom zoo cov khoom lag luam.
Lub thawv
Chaw tsim khoom
Dongguan Ntau Ntau Hlau & Cable Co., Ltd. Tau tsim nyob rau xyoo 1995, nws yog cov lag luam xeesical thiab cable kev lag luam. Peb lub tuam txhab tau ua tau ntau cov cuab yeej siv thiab cov cuab yeej tsim khoom ntau lawm thiab cov cuab yeej ntsuas, ua cov khoom siv thev naus laus zis muaj zog. Tom qab xyoo ntawm kev ua haujlwm nyuaj thiab kev txhawb nqa ntawm cov neeg siv khoom los ntawm thoob plaws lub ntiaj teb, peb lub tuam txhab tau tsim kho sai thiab yeej lub siab ua lag luam thiab sib koom ua ke. Lub tuam txhab tau dhau LS09001 Kev Tswj Xyuas Kev Tswj Xyuas Zoo, Lub Tebchaws Kev Tsim Kho Lub Tebchaws, Kev ua haujlwm hauv tebchaws, thiab kev ua lag luam tshiab.
tus yuav
Tus khub
Cov FAQ
Q: Dab tsi yog tw xaim?
T: Thermoplastic rwb thaiv tsev.
W: Dej-resistant.
Q: Dab tsi yog qhov sib txawv ntawm TW thiab Thw?
Tw yog insulated nrog ib txheej ntawm thermoplastic. Nws yog dej tiv tsis tab sis tsis muaj kev tiv thaiv ntxiv. Cov rwb thaiv tsev yog qhov yooj yim piv rau thw. Qhov nyiaj ntau tshaj plaws ntawm thw yog 60 degree (140 degree f).
Thw yog insulated nrog tuab thiab feem ntau ntau ruaj khov thermoplastic. Tsim los yog cov dej tiv taus, nws tseem muaj cov cua sov ua kom tsis kam. Qhov kev ua haujlwm siab tshaj plaws ntawm THW yog 75 degree (167 degree f) nyob rau hauv ob qho chaw ntub thiab qhuav.
Q: Dab tsi yog ob txhais tau tias hauv rwb thaiv tsev?
W: Qhia tias cov hlau yog cov dej tsis yeem. Qhov no txhais tau tias cov rwb thaiv tsev yog tiv thaiv kom tiv thaiv kev raug zas los yog cov ntawv thov sab hauv tsev thiab sab nraum zoov uas noo yuav nyob rau sab nraum zoov.
Cim npe nrov: TE ob lub hlau tooj liab, Tuam Tshoj ntxooj tooj liab hlau tuam ntxhab, cov chaw muag khoom, Hoobkas
Txhuas Dawb Thermoplastic ya ua cov kav hlau resistant hlau (tw), 600 volts, 6o degree
| Qhov loj me ntawm tus neeg kos npe | Tsis tau. & Nominal lub cheeb ntawm xaim | Phab Ntsa Thickness | Kwv yees tag nrho cov cheeb tsam | Yam tsawg kawg nkaus rwb thaiv tsev tsis kam | * Ampacity | Cabinal nominal hnyav | |
| Lub hli | Kwv yees AWG | Lub hli | Lub hli | Lub hli | M-OHM-KM | Kg / km | |
| Khov kho | |||||||
| 1.6mm | 14 | 0.8 | 3.20 | 50 | 25 | 26.63 | |
| 2. {0 hli | 12 | 0.8 | 3.60 | 50 | 30 | 38.13 | |
| 2.6mm | 10 | 0.8 | 4.20 | 50 | 40 | 59.59 | |
| 3.2 hli | 8 | 1.2 | 5.60 | 50 | 55 | 95.54 | |
| Tseg | |||||||
| 2. {0 mm2 | 14/7 | 7 x 0. 60 hli | 0.8 | 3.40 | 50 | 25 | 27.83 |
| 3.5mm2 | 12/7 | 7 x 0. 80mm | 0.8 | 4.00 | 50 | 30 | 44.31 |
| 5.5mm2 | 10/7 | 7x1. {0 hli | 0.8 | 4.60 | 50 | 40 | 64.85 |
| 8. {0 mm2 | 8/7 | 7x1.20mm | 1.2 | 6.00 | 50 | 55 | 99.64 |
| 14mm2 | 6/7 | 7x1.60mm | 1.6 | 8.00 | 40 | 80 | 177.28 |
| 22mm2 | 4/7 | 7x2. 0 hli | 1.6 | 9.20 | 40 | 105 | 259.44 |
| 30mm2 | 2/7 | 7x2.30 hli | 1.6 | 10.10 | 40 | 130 | 331.79 |
| 38mm2 | 1-19 | 19x1.60mm | 2.0 | 12.00 | 40 | 155 | 442.09 |
| 50 hli2 | 1/0-19 | 19x1.80mm | 2.0 | 13.00 | 40 | 180 | 544.54 |
| 60mm2 | 2/0-19 | 19x2. 00 hli | 2.0 | 14.00 | 30 | 205 | 657.72 |
| 80mm2 | 3/0-19 | 19x2.30mm | 2.0 | 15.50 | 30 | 250 | 848.35 |
| 100mm2 | 4/0-19 | 19x2.60mm | 2.0 | 17.00 | 30 | 290 | 1063.51 |
| 125mm2 | 250mcm | 37x2.10mm | 2.4 | 19.50 | 30 | 335 | 1362.18 |
| 150 hli2 | 300mcm | 37x2.30 hli | 2.4 | 20.90 | 20 | 375 | 1612.92 |
| 350mCM | 37x2.47mm | 2.4 | 22.10 | 20 | 420 | 1849.23 | |
| 200mm2 | 400MCM | 37x2.60mm | 2.4 | 23.00 | 20 | 440 | 2027.62 |
| 500MCM | 37x2.95 hli | 2.4 | 25.45 | 20 | 505 | 2585.99 | |
| 250 hli2 | 61 x 2.30 hli | 2.4 | 25.50 | 20 | 505 | 2576.95 | |
| 600mcm | 61 x 2.52 hli | 2.8 | 28.30 | 20 | 575 | 3114.59 | |
| 325 hli2 | 650MCM | 61 x 2.60mm | 2.8 | 29.00 | 20 | 600 | 3302.36 |
| 750mcm | 61 x 2.82 hli | 2.8 | 30.90 | 20 | 655 | 3844.86 | |
| 400MM2 | 800MCM | 61 x 2.90mm | 2.8 | 31.70 | 20 | 675 | 4061.41 |
| 500 hli2 | 1000mCM | 61 x3.20mm | 2.8 | 34.40 | 20 | 770 | 4898.28 |
| * Siv cov qauv: PEC, NEC (raws li cov huab cua kub ntawm 30 degree) | |||||||
