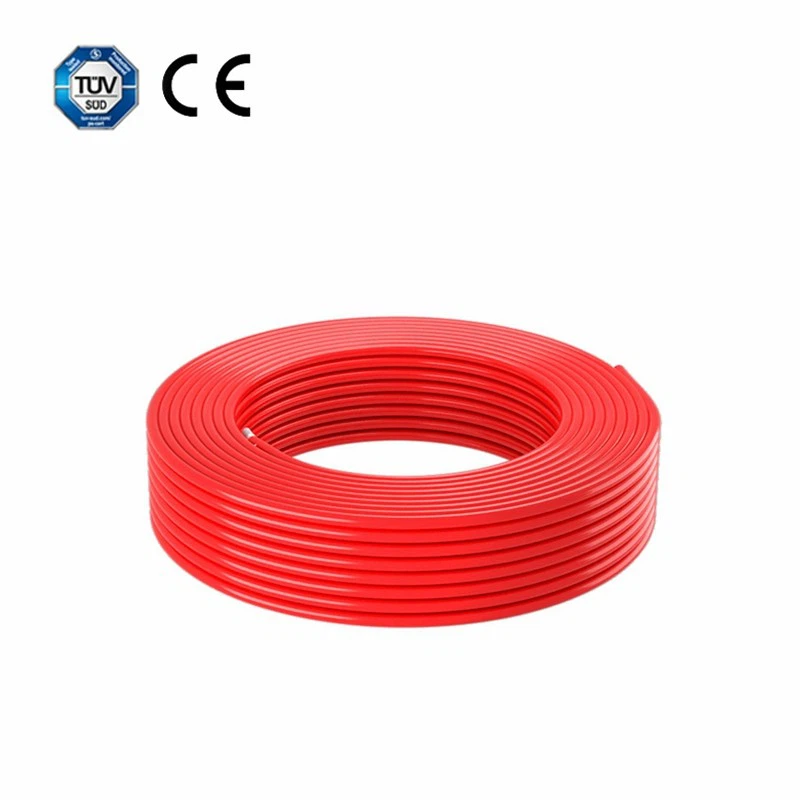

Hnub ci PV cable yog tinned tooj liab tus neeg xyuas pib nrog XLPO rwb thaiv tsev uas tsis tshua muaj kev hloov pauv thiab txhim khu kev qha. Nws yog tshwj xeeb uas tsim los rau complex thiab hnyav sab nraum zoov ib puag ncig thiab muaj peev xwm ua tau raws li cov kev xav tau ntawm kev lag luam hnub ci zog. H1Z2Z2K photovoltaic xaim tau txais cov ntawv pov thawj thoob ntiaj teb xws li TUV / UL thiab ua raws li cov qauv xws li UL4703, IEC62930, thiab EN 50618, ua kom zoo thiab ua raws, kom ntseeg tau tias kev ua haujlwm tsis tu ncua thiab kev nyab xeeb ntawm cov tshuab hluav taws xob photovoltaic, txo qis tus nqi tsis ua haujlwm. thiab cov nqi khiav hauj lwm tom qab, nrog rau kev pab cuam lub neej ntawm ntau tshaj 25 xyoo.
Daim ntawv thov
Solar Cables yog tsim rau siv nyob rau hauv ntau yam nyuaj nyob rau hauv lub tsev thiab sab nraum zoov ib puag ncig, los ntawm rooftops mus rau suab puam, pas dej, seasides, thiab roob. Hnub Ci Cable tau pom tias nws muaj peev xwm hloov tau rau cov huab cua kub, av noo, thiab ntsev cov ntsiab lus, thiab nws cov seamless kev koom ua ke rau hauv loj-scale hnub ci fais fab chaw nres tsheb, ru tsev installation, thiab floating chaw nres tsheb nyob rau hauv dej. Peb cov kev qhia tshwj xeeb ntawm 1.5mm (16AWG) txog 120mm (4/0AWG), lossis qhov loj dua tuaj yeem muab tau.
Feature
Ntawv pov thawj: TUV / UL
Txheem: LEC 62930 / EN 50618: 2014 / UL4703
Tus neeg xyuas pib: Chav kawm 5 (hloov tau) tinned tooj liab, raws li EN 60228 thiab IEC 60228
Rwb thaiv tsev & Sheath Jacket: Hla-Txuas Polyolefin
Rated voltage: DC 1500V (nruab nrab ntawm cov conductors thiab nruab nrab ntawm tus neeg xyuas pib thiab lub ntiaj teb), AC Uo / U: 1.0 / 1.0 KV
Application Class: A
Kev tiv thaiv chav kawm: II
Kev ua haujlwm dej: AD7
Kev ntsuas hluav taws xob: 6500V, 50Hz, 10min
Kev Ua Haujlwm Hluav Taws Xob: Cov nplaim hluav taws tsis nthuav tawm raws li UNE-EN 60332-1 thiab IEC 60332-1
Kev ntsuas kub siab -40 degree -90 degree
Qhov siab tshaj plaws: 120 degree
Daim ntawv pov thawj TUV / UL
No.of Conductor: Ib Tub Ntxhais / Twin Core
Daim ntawv pov thawj
Peb cov khoom tau ua tiav ntau yam kev lees paub thoob ntiaj teb, suav nrog TUV, UL, EU CPR, CE, ROHS, thiab lwm yam.
Pob
Cov kab ntau lawm
1. Rau ntau tshaj 20 xyoo, Greater Wire & Cable manufacturers tau tas li xa cov khoom zoo. Peb lub Hoobkas 12, 000 square meter muaj cov kab ntau lawm thiab cov chaw soj nstuam zoo los xyuas kom meej cov khoom zoo.
2. Muaj kev tswj xyuas nruj nruj kom ntseeg tau tias txhua yam khoom peb muab tau raws li cov qauv zoo tshaj plaws thiab kev ntseeg siab.
3. Peb qhov kev cog lus rau kev xa khoom sai thiab kev tawm tswv yim sai ua rau peb sib nrug ntawm kev sib tw. Peb lub sijhawm xa khoom ntau dua li ntawm peb cov neeg sib tw, ua kom koj cov kev xav tau tau ntsib sai thiab ua tau zoo.
4. Peb khaws cov khoom lag luam ntau, thiab koj tuaj yeem thov cov qauv pub dawb kom paub qhov zoo ua ntej.
5. Muaj kev paub dhau los hauv kev xa tawm cov xaim hluav taws xob thiab cov xaim hluav taws xob, muab cov xov hlau thiab cables rau ntau tshaj 180 lub teb chaws thiab cheeb tsam thoob ntiaj teb.
Case
Tus khub
FAQ
Q: Lub hnub ci cable yog dab tsi?
Q: Dab tsi ntawm cov hlau koj siv rau hnub ci vaj huam sib luag?
Q: Puas yog hnub ci cable txawv ntawm ib txwm cable?
Q: Kuv puas tuaj yeem siv cov kab hluav taws xob ib txwm siv rau hnub ci vaj huam sib luag?
