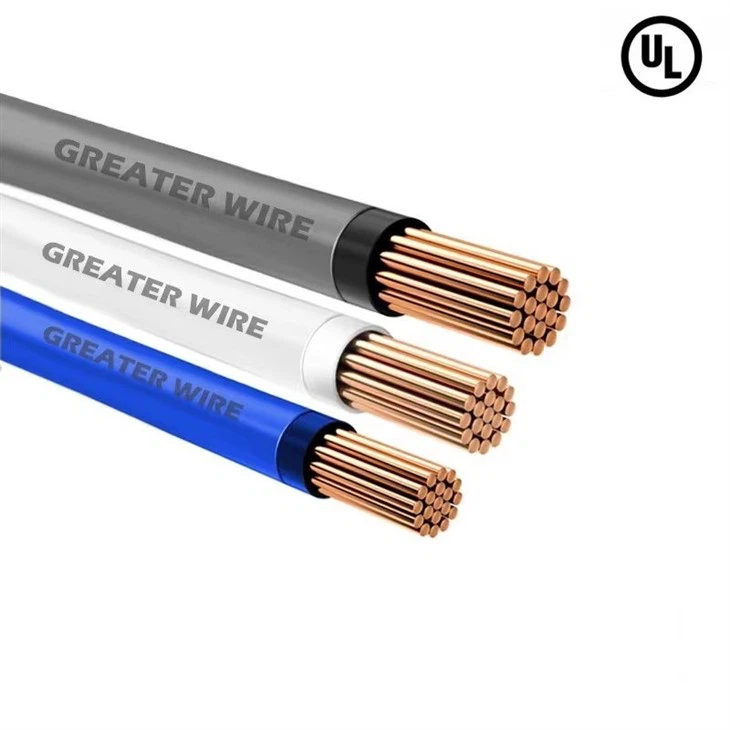

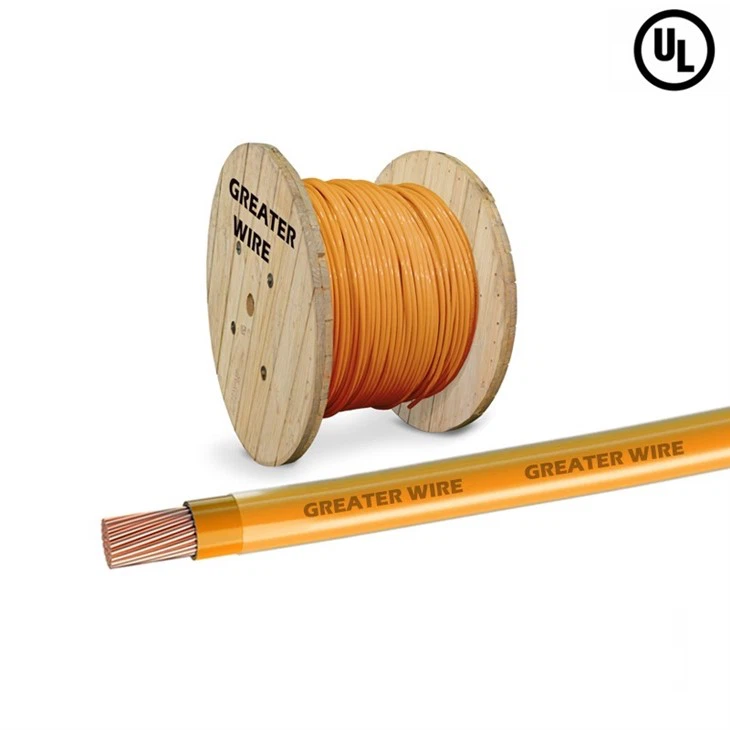

500 MCM Thhak Hlau yog tus cwj pwm los ntawm nws tus neeg kos loj loj, uas txhais rau ib thaj chaw hla ntawm thaj tsam ntawm 500, {3}. Qhov loj me me tso cai rau cov hlau kom tuav cov hluav taws xob siab nrog tsawg heev thiab ua kom kub. Tus xov hlau nta tus neeg saib xyuas ua los ntawm cov tooj liab siab, uas paub txog nws cov hluav taws xob hluav taws xob zoo. Tus tooj liab yog kos thiab tso tawm los txhim kho kev hloov pauv, ua rau cov hlau yooj yim dua los lis thiab nruab.
Lub rwb thaiv tsev ntawm 500 MCK Thomber yog tsim los ntawm tshav kub-resistant polyvinyl chloride (pvc), uas muab kev tiv thaiv hluav taws xob thiab ib puag ncig. Rau ntxiv durability, xaim yog coated nrog cov nylon sheath, uas muaj kev tiv thaiv kom tshem tawm, noo noo, thiab tshuaj lom neeg. Qhov kev sib xyaw ua ke ntawm cov ntaub ntawv kom ntseeg tau tias cov hlau tseem txhim khu kev qha thiab ua haujlwm hauv ntau qhov kev teeb tsa ib puag ncig.
Daim ntawv thov
Cov kev lag luam lag luam nyob ntawm ntau ntawm cov kev daws teeb meem kom ntseeg tau tias qhov kev ua haujlwm tsis haum ntawm cov tshuab hloov thiab khoom siv. 500 MCM Thhak Hlau yog zoo rau-tsim nyog rau cov chaw ib puag ncig vim nws lub peev xwm los tuav lub siab puas thiab tiv thaiv ntau thaj chaw ib puag ncig. Nws cov kev tsim kho tso cai rau nws los tiv thaiv kev ua haujlwm ntawm kev lag luam, suav nrog kev kub ntxhov, kev ntxhov siab, thiab cov tshuaj muaj kev hnyav. Seb siv rau lub hwj chim hnyav-lub zog, cov tshuab hluav taws xob, lossis cov khoom siv tsim khoom loj, 500 mcm thhn Khib thiab kev ua tau zoo uas xav tau los ua haujlwm kom zoo.
Yam zoo
● Astm- B3, B8, thiab B787 (19 xaim hlau txheej txheem unilay-stranded)
● 150 UL Tus Qauv 83, 758, 1063, thiab 1581
● CSA C22.2 NO.75, T90 T90 NYLON SIPLONER LOS 1000 KCMIL
● ft 2 -} txhua qhov ntau
● Lub hnub tuaj yeem tiv taus - ntau thiab tsawg 8 AWG thiab loj dua
RoHS / CAWM ASIAN
● Ul & BPS ntawv pov thawj
● Thhn Thooj ● ant90 Nylon- cov chaw qhuav tsis pub dhau90 Degree C
● Cov chaw ntub dej tsis pub tshaj 75 degree lossis cov chaw qhuav tsis pub dhau 905 degree thaum raug roj
Thwn {-2- ntub dej tsis pub dhau 90 degree tsis pub tshaj 75 degree thaum raug roj
Daim ntawv muaj cai
Peb cov khoom tau ua tiav ntau yam kev muaj tswv yim muaj nuj nqis heev, suav nrog UL, TUV, SUV, EU CPR, CE, thiab lwm tus.
Lub thawv
Chaw tsim khoom
Ntau Ntau Hlau & Cable Company tau tsim ib lub tuam txhab muaj zog thoob ntiaj teb, nrog peb cov khoom raug xa tawm rau ntau lub teb chaws thoob ntiaj teb. Peb cov xov xwm thoob ntiaj teb ntawm cov xa khoom thiab cov neeg faib khoom kom ntseeg tau tias peb cov xaim siab tau yooj yim rau cov neeg siv khoom thoob plaws thaj chaw sib txawv. Peb tau cog lus kom nthuav peb lub hauv paus thaum tswj cov kev ua tau zoo zoo hauv txhua lub khw peb ua haujlwm.
Rooj plaub
Tus khub
Cov FAQ
Q: Dab tsi yog 500 MCM hlau ntaus nqi rau?
Q: Dab tsi loj loj hlau yog 500 kcmil?
Q: Muaj pes tsawg phaus yog 500 mcm tooj liab ib txhais ko taw?
Cim npe nrov: 500 MCM Thn Tooj Hlau, Tuam Tshoj 500 McM Thipper Hlau Manufacturers, lwm tus neeg, Hoobkas
| Lead-dawb thermoplastic kub-resistant hluav taws xob xaim nrog nylon sheath (thylon sheath (Thwn / thwn {2}}). 600V. 90 degree | |||||||||
| Tus neeg xyuas loj | Tsis tau. & Nominal lub cheeb ntawm xaim | Phab Ntsa Thickness | Kwv yees tag nrho cov cheeb tsam | Yam tsawg kawg nkaus rwb thaiv tsev tsis kam | * Ampacity | Cabinal nominal hnyav | |||
| (hli) | (AWG) | (hli) | Pvc (hli) | Nylon (hli) | (hli) | mω / Km | 90 degree ntub | 90 Degree qhuav | Kg / km |
| Khov kho | Thwn | Hwj chim | |||||||
| 1.6mm | 14 | 1x1.60mm | 0.4 | 0.10 | 2.60 | 130 | 35 | 35 | 22.62 |
| 2. {0 hli | 12 | 1x2. 00 hli | 0.4 | 0.10 | 3.00 | 110 | 40 | 40 | 33.57 |
| 2.6mm | 10 | 1x2.60mm | 0.5 | 0.10 | 3.80 | 120 | 55 | 55 | 55.78 |
| 3.2 hli | 8 | 1x3.20mm | 0.8 | 0.13 | 5.06 | 120 | 75 | 75 | 88.33 |
| Tseg | |||||||||
| 2. {0 mm² | 14/7 | 7/0.60 | 0.4 | 0.10 | 2.80 | 130 | 30 | 35 | 23.51 |
| 3.5mm² | 12/7 | 7/0.80 | 0.4 | 0.10 | 3.40 | 110 | 35 | 40 | 39.12 |
| 5.5mm² | 10/7 | 7/1.00 | 0.5 | 0.10 | 4.20 | 120 | 50 | 55 | 60.56 |
| 8. {0 mm² | 8/7 | 7/1.20 | 0.8 | 0.13 | 5.46 | 120 | 65 | 75 | 91.95 |
| 14mm² | 6/7 | 7/1.60 | 0.8 | 0.13 | 6.66 | 100 | 95 | 105 | 151.77 |
| 22mm² | 4/7 | 7/2.00 | 1 | 0.15 | 8.30 | 100 | 130 | 140 | 236.65 |
| 30mm² | 2/7 | 7/2.30 | 1 | 0.15 | 9.20 | 100 | 160 | 170 | 306.50 |
| 38mm² | 1-19 | 19/1.60 | 1.3 | 0.18 | 10.96 | 100 | 185 | 195 | 409.82 |
| 50mm² | 1/0-19 | 19/1.80 | 1.3 | 0.18 | 11.96 | 100 | 220 | 235 | 509.05 |
| 60mm² | 2/0-19 | 19/2.00 | 1.3 | 0.18 | 12.96 | 80 | 250 | 260 | 618.96 |
| 80mm² | 3/0-19 | 19/2.30 | 1.3 | 0.18 | 14.46 | 80 | 300 | 320 | 804.44 |
| 100mm² | 4/0-19 | 19/2.60 | 1.3 | 0.18 | 15.96 | 80 | 355 | 370 | 1013.94 |
| 125mm² | 250 mcm | 37/2.10 | 1.6 | 0.18 | 18.26 | 80 | 400 | 420 | 1296.37 |
| 150 hli | 300 McM | 37/2.30 | 1.6 | 0.20 | 19.70 | 80 | 440 | 475 | 1542.02 |
| 350 MCM | 37/2.47 | 1.6 | 0.20 | 20.90 | 60 | 505 | 523 | 1783.07 | |
| 200mm² | 400 MCM | 37/2.60 | 1.6 | 0.20 | 21.80 | 60 | 540 | 570 | 1946.72 |
| 500 mcm | 37/2.95 | 1.6 | 0.20 | 24.25 | 60 | 620 | 655 | 2486.02 | |
| 250 hli | 500 mcm | 61/2.30 | 1.6 | 0.20 | 24.30 | 60 | 620 | 655 | 2437.34 |
| 600 MCM | 61/2.52 | 1.8 | 0.23 | 26.76 | 60 | 690 | 710 | 2995.93 | |
| 325mm² | 650 MCM | 61/2.60 | 1.8 | 0.23 | 27.46 | 60 | 720 | 770 | 3191.58 |
| 750 MCM | 61/2.82 | 1.8 | 0.23 | 29.36 | 60 | 785 | 820 | 3719.63 | |
| 400mm² | 800 MCM | 61/2.90 | 1.8 | 0.23 | 30.16 | 60 | 810 | 875 | 3927.55 |
| 500 hli | 1000 MCM | 61/3.20 | 1.8 | 0.23 | 32.86 | 60 | 930 | 995 | 4750.91 |
| Cov Qauv Txheej Txheem: PEC, NEC (raws li qhov kub ntawm 30 degree) | |||||||||
