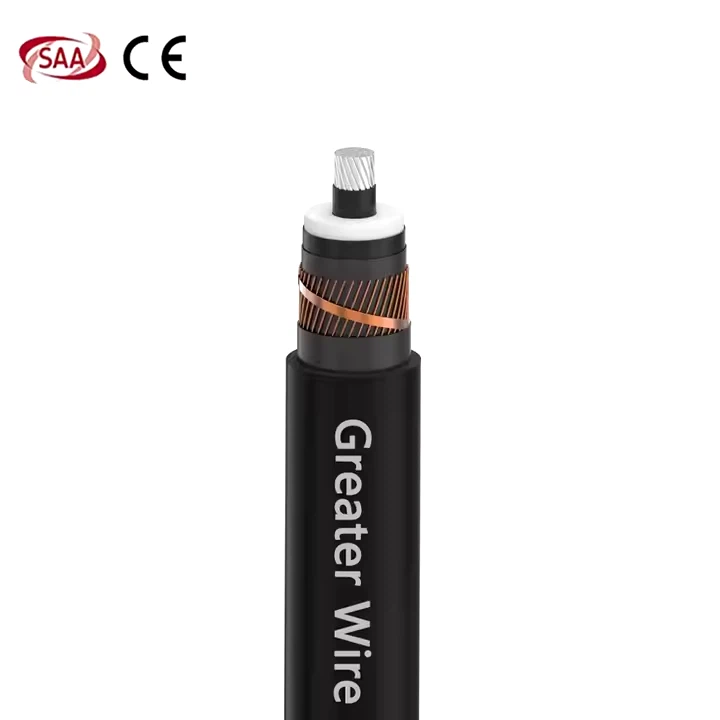

1.9 / 3.3 (3.6) kV ib leeg tub ntxhais aluminium nruab nrab voltage (MV) cable yog tsim nrog ib tug stranded compacted ncig aluminium conductor uas ua raws li AS / NZS 1125 qauv, muab qhov sib npaug ntawm conductivity thiab hnyav efficiency. Aluminium, yog sib zog dua tooj liab, ua rau lub cable no tus nqi-zoo thiab tsawg ntom lwm txoj rau nruab nrab-voltage fais fab faib tshuab yam tsis muaj kev cuam tshuam rau kev ua tau zoo.
yam ntxwv
Ib leeg tub ntxhais txhuas 1.9 / 3.3 (3.6) kV MV cable yog dav siv nyob rau hauv nruab nrab-voltage fais fab faib tshuab rau ntau yam kev lag luam, kev lag luam, thiab kev siv vaj tse. Nws cov qauv tsim muaj zog, uas muaj cov hlua khi hlua khi hlua khi thiab XLPE rwb thaiv tsev, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov xwm txheej uas yuav tsum tau muaj zog thiab txhim khu kev qha. Cov kab hluav taws xob no feem ntau yog siv rau hauv hluav taws xob substations, kev siv hluav taws xob, kev siv hluav taws xob txuas ntxiv xws li cua thiab hnub ci ua liaj ua teb, thiab cov nroj tsuag muaj qhov nruab nrab-voltage hluav taws xob yuav tsum tau xa mus rau kev nyab xeeb ntawm kev ncua ntev.
Feature
* Tus neeg xyuas pib: Stranded Compacted Circular aluminium conductor raws li AS / NZS 1125
* Conductor Screen: Extruded Semi-conductive compound
* Rwb thaiv tsev: XLPE * Rwb thaiv tsev Screen: Extruded Semi-conductive compound
* Kev thaiv dej ntev: Dej thaiv daim kab xev saum toj thiab hauv qab tooj liab npo (Yeem)
* Hlau Rwb thaiv tsev Screen: Tooj Hlau Screen + helically siv tooj liab daim kab xev (E / F tam sim no muaj peev xwm - Raws li qhov yuav tsum tau ua)
* Hlau Sheath: Lead Alloy (yeem)
* Sab nrauv: Extruded Polyvinyl Chloride, Xim: Dub (Lwm txheej: PVC + HDPE Composite Sheath lossis LSZH Cov ntaub qhwv sab nraud thiab cov ntsuas yuav hloov raws li)
Daim ntawv pov thawj
1.9 / 3.3 (3.6) kV aluminium nruab nrab voltage cable ua raws li AS / NZS 1429.1 tus qauv thiab tau dhau SAA daim ntawv pov thawj (Standards Australia Certification), qhia tias cov cable tau dhau qhov kev kuaj xyuas zoo thiab kev nyab xeeb thiab ua raws li cov khoom siv hluav taws xob ntawm Australia thiab New Zealand. Qhov no muab kev ruaj ntseg zoo rau nws siv nyob rau hauv Australian thiab New Zealand kev lag luam, ua pov thawj tias nws ua tau raws li cov kev cai siab ntawm cov kev cai hauv zos thiab cov qauv ntawm cov hluav taws xob kev nyab xeeb thiab kev ua haujlwm.
Pob
Cov kab ntau lawm
Greater Wire & Cable Chaw tsim tshuaj paus yog ib qho kev koom ua ke ntawm ntse thiab digital factories tsim los ua kom ntau lawm ceev thiab tseem ceeb dua kom paub meej cov qauv zoo tshaj plaws, nrog cov khoom siv hluav taws xob ntau lawm kom raug mus txog 0.002mm. Txhua lub cable tsim tau dhau los ua tiav 100% kev tshuaj xyuas thoob plaws hauv cov txheej txheem tsim khoom thiab tshuaj xyuas, tsim kom muaj lub sijhawm tshiab ntawm qhov tseeb thiab ua haujlwm tau zoo. Kev teeb tsa siab heev tshem tawm qhov yuam kev thiab qhov tsis xws luag cuam tshuam nrog kev sib dhos ntawm phau ntawv, tsim kev cog lus ntawm kev xa khoom nrog kev ntseeg siab tsis sib xws.
Case
Tus khub
FAQ
Q: mv 105 15kv cable siv rau dab tsi?
Q: MV 15 kV cable txhais li cas?
Q: Puas yog 15kV nruab nrab-voltage cable?
Cim npe nrov: 1.9 / 3.3 (3.6)kv aluminium mv cable, Tuam Tshoj ib leeg tub ntxhais 1.9 / 3.3 (3.6)kv aluminium mv cable manufacturers, lwm tus neeg, Hoobkas
|
Tsis muaj
Cores
|
Core Cross
ntu
Thaj chaw
|
Nominal Dia
|
||
|
Hauv qab
nws yog xim hlau
npo
|
Hauv qab
nws yog xim hlau
npo
|
Zuag qhia tag nrho
|
||
|
Tsis muaj.
|
mm2 ua
|
mm
|
mm
|
mm
|
| 1 | 16 | 11.8 | 13.7 | 18.0 |
| 1 | 25 | 13.1 | 15.0 | 19.0 |
| 1 | 35 | 14.1 | 16.0 | 20.0 |
| 1 | 50 | 15.2 | 17.1 | 21.0 |
| 1 | 70 | 16.8 | 18.7 | 23.0 |
| 1 | 95 | 18.4 | 20.3 | 24.0 |
| 1 | 120 | 20 | 21.9 | 26.0 |
| 1 | 150 | 21.3 | 23.2 | 27.0 |
| 1 | 185 | 23 | 24.9 | 29.0 |
| 1 | 240 | 25.3 | 27.2 | 31.0 |
| 1 | 300 | 27.5 | 29.4 | 34.0 |
| 1 | 400 | 30.2 | 32.1 | 37.0 |
| 1 | 500 | 34 | 35.9 | 41.0 |
| 1 | 630 | 37.6 | 39.5 | 44.0 |
| 1 | 800 | 41.9 | 43.8 | 49.0 |
| 1 | 1000 | 46.8 | 48.7 | 54.0 |
|
No.of Cores
|
Core Cross sectional Area
|
Max. DC Resistance ntawm 20˚C
|
Max. AC Resistance ntawm 90˚C
|
Kwv yees li. Capacitance
|
Kwv yees li. Inductance
|
Kwv yees li.
Reactance |
Kev ntsuas tam sim no tsis tu ncua
|
|||||
|
Hauv av ntawm 20 degree
|
Hauv Duct ntawm
20 degree
|
Hauv huab cua ntawm 30 degree
|
||||||||||
|
Pav ca |
Trefoil
|
Pav ca
|
Trefoil
|
Pav ca
|
Trefoil
|
|||||||
|
Tsis muaj.
|
mm2 ua
|
Ω/km
|
Ω/km
|
µF/km
|
mH/km
|
Ω/km
|
Amps
|
|||||
| 1 | 16 | 1.91 | 2.449 | 0.26 | 0.467 | 0.147 | 88 | 84 | 81 | 80 | 99 | 97 |
| 1 | 25 | 1.2 | 1.539 | 0.3 | 0.431 | 0.135 | 112 | 108 | 103 | 102 | 130 | 127 |
| 1 | 35 | 0.868 | 1.113 | 0.34 | 0.411 | 0.129 | 134 | 129 | 123 | 122 | 157 | 154 |
| 1 | 50 | 0.641 | 0.822 | 0.38 | 0.392 | 0.123 | 157 | 152 | 146 | 142 | 189 | 184 |
| 1 | 70 | 0.443 | 0.568 | 0.43 | 0.362 | 0.114 | 192 | 186 | 178 | 176 | 236 | 230 |
| 1 | 95 | 0.32 | 0.411 | 0.49 | 0.345 | 0.108 | 229 | 221 | 213 | 210 | 287 | 280 |
| 1 | 120 | 0.253 | 0.325 | 0.55 | 0.328 | 0.103 | 260 | 252 | 242 | 240 | 332 | 324 |
| 1 | 150 | 0.206 | 0.265 | 0.59 | 0.319 | 0.100 | 288 | 281 | 271 | 267 | 376 | 368 |
| 1 | 185 | 0.164 | 0.211 | 0.65 | 0.309 | 0.097 | 324 | 317 | 307 | 303 | 432 | 424 |
| 1 | 240 | 0.125 | 0.162 | 0.73 | 0.298 | 0.094 | 373 | 367 | 356 | 351 | 511 | 502 |
| 1 | 300 | 0.1 | 0.130 | 0.81 | 0.289 | 0.091 | 419 | 414 | 402 | 397 | 586 | 577 |
| 1 | 400 | 0.0778 | 0.102 | 0.9 | 0.280 | 0.088 | 466 | 470 | 457 | 451 | 676 | 673 |
| 1 | 500 | 0.0605 | 0.081 | 0.93 | 0.274 | 0.086 | 525 | 530 | 510 | 505 | 760 | 750 |
| 1 | 630 | 0.0469 | 0.064 | 0.95 | 0.269 | 0.084 | 580 | 585 | 560 | 555 | 860 | 850 |
| 1 | 800 | 0.0367 | 0.052 | 0.99 | 0.264 | 0.083 | 650 | 655 | 620 | 615 | 960 | 950 |
| 1 | 1000 | 0.0291 | 0.043 | 1.04 | 0.259 | 0.081 | 715 | 705 | 670 | 665 | 1060 | 1050 |
| 20 | 25 | 35 | 40 | 45 | 50 | 55 | 60 |
| 1.08 | 1.04 | 0.96 | 0.91 | 0.87 | 0.82 | 0.76 | 0.71 |
| 10 | 15 | 25 | 30 | 35 | 40 | 45 | 50 |
| 1.07 | 1.04 | 0.96 | 0.93 | 0.89 | 0.85 | 0.80 | 0.76 |
|
No.of Cores
|
Core Cross sectional Area
|
Max. rub nro ntawm tus neeg xyuas pib
|
Charging Tam sim no ib theem
|
Zero sequence impedance
|
Hluav taws xob Stress ntawm Conductor Screen
|
Kev ntsuas luv luv ntawm Phase conductor
|
| Tsis muaj. | mm² os | kN kev | Amps / Km | Ohms/Km | kV / hli | kA, sec |
| 1 | 16 | 0.8 | 0.16 | 3.61 | 1.3 | 1.5 |
| 1 | 25 | 1.25 | 0.18 | 2.70 | 1.2 | 2.4 |
| 1 | 35 | 1.75 | 0.2 | 2.27 | 1.2 | 3.3 |
| 1 | 50 | 2.5 | 0.23 | 1.98 | 1.1 | 4.7 |
| 1 | 70 | 3.5 | 0.26 | 1.73 | 1.1 | 6.6 |
| 1 | 95 | 4.75 | 0.29 | 1.57 | 1.1 | 9.0 |
| 1 | 120 | 6 | 0.33 | 1.48 | 1.1 | 11.3 |
| 1 | 150 | 7.5 | 0.35 | 1.42 | 1.1 | 14.2 |
| 1 | 185 | 9.25 | 0.39 | 1.37 | 1.1 | 17.4 |
| 1 | 240 | 12 | 0.44 | 1.32 | 1.0 | 22.6 |
| 1 | 300 | 15 | 0.48 | 1.29 | 1.0 | 28.3 |
| 1 | 400 | 20 | 0.54 | 1.26 | 1.0 | 37.6 |
| 1 | 500 | 25 | 0.56 | 1.24 | 0.9 | 47.2 |
| 1 | 630 | 31.5 | 0.57 | 1.22 | 0.9 | 59.6 |
| 1 | 800 | 40 | 0.59 | 1.21 | 0.8 | 75.6 |
| 1 | 1000 | 50 | 0.62 | 1.20 | 0.7 | 94.5 |
